Diffraction project datasets FG7255A_2p1a

  • Method: MAD
  • Resolution: 2.1 Å
  • Space group: P 21 21 21
Download all images (3.2 GB)

PDB website for 2P1A
PDB validation report for 2P1A

doi:10.18430/M32P1A

Project details

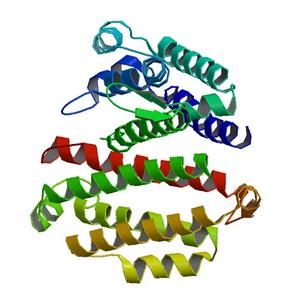

Title Crystal structure of a putative metal-binding protein (bce_2162) from bacillus cereus atcc 10987 at 2.10 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.22 / 0.27
Unit cell edges [Å] 45.47 x 77.82 x 87.07
Unit cell angles [°] 90.0, 90.0, 90.0

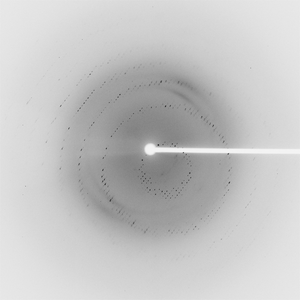

Dataset 34562_1_E1_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 300.0
Oscillation width [°] 1.00
Phi [°] 344.0
Wavelength [Å] 0.97926
Experiment Date 2007-02-11
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

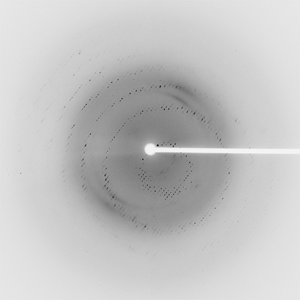

Dataset 34562_1_E2_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 300.0
Oscillation width [°] 1.00
Phi [°] 344.0
Wavelength [Å] 0.91162
Experiment Date 2007-02-11
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

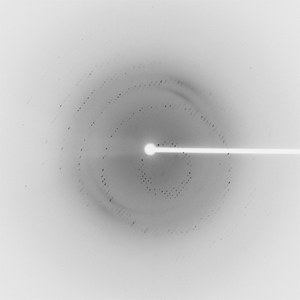

Dataset 34562_2_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 300.0
Oscillation width [°] 1.00
Phi [°] 344.0
Wavelength [Å] 0.97904
Experiment Date 2007-02-11
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
