Diffraction project datasets FB8805A_2q9k

  • Method: MAD
  • Resolution: 1.59 Å
  • Space group: P 31 2 1
Download all images (4.5 GB)

PDB website for 2Q9K
PDB validation report for 2Q9K

doi:10.18430/M32Q9K

Project details

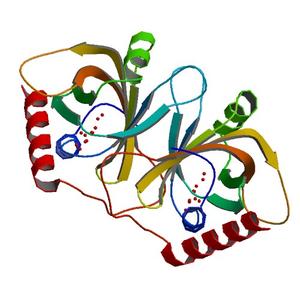

Title Crystal structure of a putative oxidoreductase (exig_1997) from exiguobacterium sibiricum 255-15 at 1.59 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.20 / 0.25
Unit cell edges [Å] 56.31 x 56.31 x 95.21
Unit cell angles [°] 90.0, 90.0, 120.0

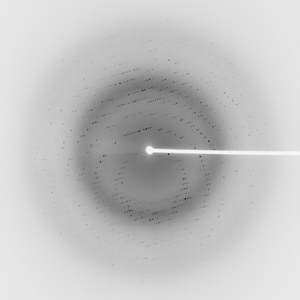

Dataset 53059_1_E1_###.mccd details

Number of frames 120 (1 - 120)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 122.0
Wavelength [Å] 0.97922
Experiment Date 2007-06-03
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

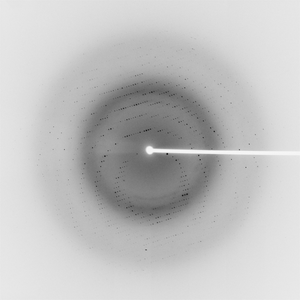

Dataset 53059_1_E2_###.mccd details

Number of frames 120 (1 - 120)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 122.0
Wavelength [Å] 0.91162
Experiment Date 2007-06-03
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

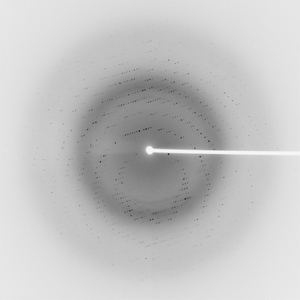

Dataset 53059_2_###.mccd details

Number of frames 120 (1 - 120)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 122.0
Wavelength [Å] 0.97908
Experiment Date 2007-06-03
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
