Diffraction project datasets FB10610B_2r0x

  • Method: MAD
  • Resolution: 1.06 Å
  • Space group: C 1 2 1
Download all images (7.3 GB)

PDB website for 2R0X

doi:10.18430/M32R0X

Project details

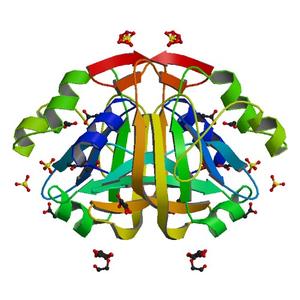

Title Crystal structure of a putative flavin reductase (ycdh, hs_1225) from haemophilus somnus 129pt at 1.06 A resolution
Authors Joint Center for Structural Genomics (JCSG)
R / Rfree 0.14 / 0.17
Unit cell edges [Å] 72.02 x 38.85 x 48.44
Unit cell angles [°] 90.0, 115.6, 90.0

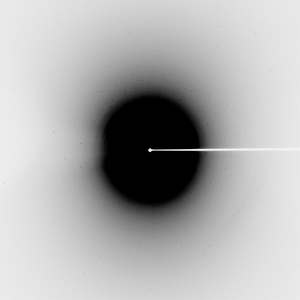

Dataset 54906_1_E1_###.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 110.0
Oscillation width [°] 1.00
Phi [°] 98.0
Wavelength [Å] 0.97925
Experiment Date 2007-07-01
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

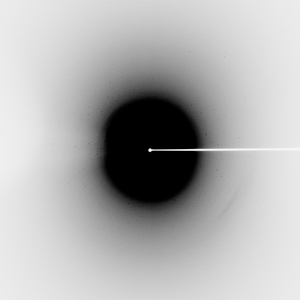

Dataset 54906_1_E2_###.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 110.0
Oscillation width [°] 1.00
Phi [°] 98.0
Wavelength [Å] 0.91837
Experiment Date 2007-07-01
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

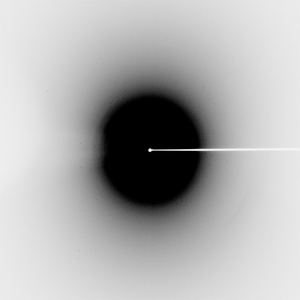

Dataset 54906_2_###.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 110.0
Oscillation width [°] 1.00
Phi [°] 98.0
Wavelength [Å] 0.97898
Experiment Date 2007-07-01
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
