Diffraction project datasets FB10608A_2qck

  • Method: MAD
  • Resolution: 1.9 Å
  • Space group: P 62 2 2
Download all images (4.7 GB)

PDB website for 2QCK
PDB validation report for 2QCK

doi:10.18430/M32QCK

Project details

Title Crystal structure of flavin reductase domain protein (YP_831077.1) from Arthrobacter sp. FB24 at 1.90 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.20 / 0.25
Unit cell edges [Å] 60.51 x 60.51 x 180.70
Unit cell angles [°] 90.0, 90.0, 120.0

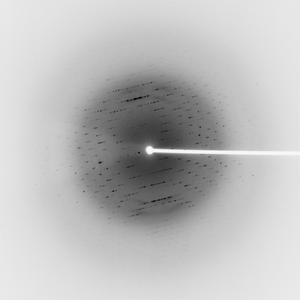

Dataset 52594_1_E1_###.mccd details

Number of frames 120 (1 - 120)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 115.0
Wavelength [Å] 0.97922
Experiment Date 2007-06-03
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

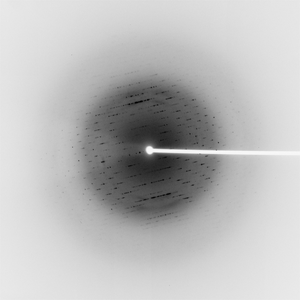

Dataset 52594_1_E2_###.mccd details

Number of frames 120 (1 - 120)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 115.0
Wavelength [Å] 0.91162
Experiment Date 2007-06-03
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

Dataset 52594_2_###.mccd details

Number of frames 120 (1 - 120)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 115.0
Wavelength [Å] 0.97908
Experiment Date 2007-06-03
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
