Diffraction project datasets EscoA_17938_a_AE1-ATP_8vw2
- Resolution: 1.95 Å
- Space group: P 21 21 21
Uniprot website for P14900
PDB website for 8VW2
PDB validation report for 8VW2
doi:10.18430/m38vw2
Project details

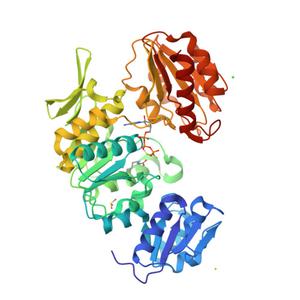

| Title | Crystal Structure of Apo UDP-N-acetylmuramoylalanine--D-glutamate ligase (MurD) from E. coli (ATP bound) |
| Authors | Seattle Structural Genomics Center for Infectious Disease (SSGCID) |
| R / Rfree | 0.17 / 0.22 |
| Unit cell edges [Å] | 58.46 x 69.94 x 100.53 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

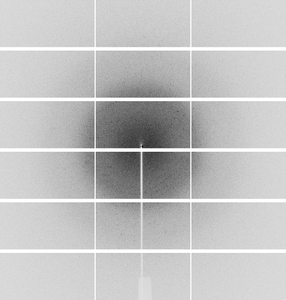

Dataset PSL-1106_883_master.h5@##### details
| Number of frames | 1800 (1 - 1800) |
| Distance [mm] | 150.0 |
| Oscillation width [°] | 0.20 |
| Wavelength [Å] | 1.03320 |
| Equipment | 19-ID 2 at NSLS II (National Synchrotron Light Source II) |
