Diffraction project datasets EscoA_17938_a_AE1-ADP_8vw1
- Resolution: 1.7 Å
- Space group: P 21 21 21
Uniprot website for P14900
PDB website for 8VW1
PDB validation report for 8VW1
doi:10.18430/m38vw1
Project details

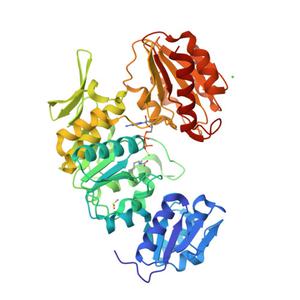

| Title | Crystal Structure of Apo UDP-N-acetylmuramoylalanine--D-glutamate ligase (MurD) from E. coli (ADP bound) |
| Authors | Seattle Structural Genomics Center for Infectious Disease (SSGCID) |
| R / Rfree | 0.16 / 0.20 |
| Unit cell edges [Å] | 58.47 x 69.24 x 100.47 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

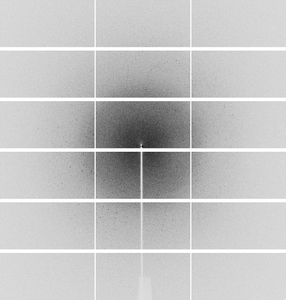

Dataset PSL-1105_877_master.h5@##### details
| Number of frames | 1800 (1 - 1800) |
| Distance [mm] | 150.0 |
| Oscillation width [°] | 0.20 |
| Wavelength [Å] | 1.03320 |
| Equipment | 19-ID 2 at NSLS II (National Synchrotron Light Source II) |
