Diffraction project datasets ElanA_00692_a_B1_6phe
- Resolution: 2.1 Å
- Space group: P 43 21 2
PDB website for 6PHE
PDB validation report for 6PHE
doi:10.18430/m36phe
Project details

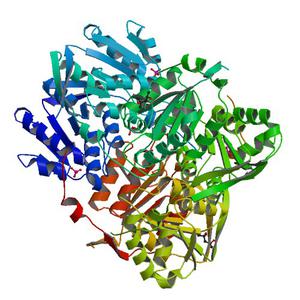

| Title | Crystal structure of Methylglyoxal synthase from Elizabethkingia anophelis NUHP1 |
| Authors | Seattle Structural Genomics Center for Infectious Disease (SSGCID) |
| R / Rfree | 0.15 / 0.18 |
| Unit cell edges [Å] | 167.59 x 167.59 x 159.90 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

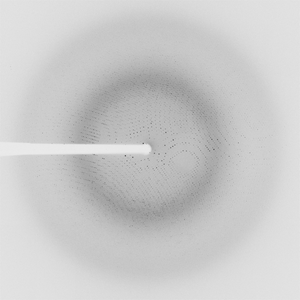

Dataset vsf3-5.### details
| Number of frames | 120 (1 - 120) |
| Distance [mm] | 240.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 100.0 |
| Wavelength [Å] | 0.97872 |
| Experiment Date | 2018-03-15 |
| Equipment | 21-ID-F at APS (Advanced Photon Source) |
