Diffraction project datasets EL17883B_4fho
Project details
| Title |

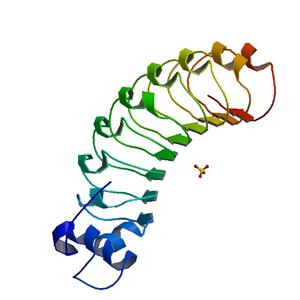

Crystal structure of an internalin C2 (inlC2) from Listeria monocytogenes str. 4b F2365 at 1.90 A resolution |
| Authors |
Joint Center for Structural Genomics (JCSG) |
| R / Rfree |
0.19 / 0.23 |
| Unit cell edges [Å] |
115.79 x
115.79 x
76.93
|
| Unit cell angles [°] |
90.0,
90.0,
120.0
|

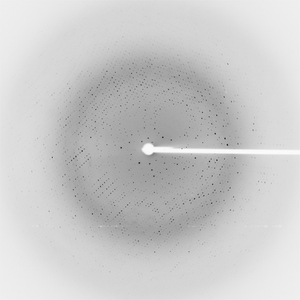

Dataset 178959_1_#####.mccd details
| Number of frames |
300 (1 - 300) |
| Distance [mm] |
300.0 |
| Oscillation width [°] |
0.30 |
| Phi [°] |
45.0 |
| Wavelength [Å] |
0.98086 |
| Experiment Date |
2012-04-12 |
| Equipment |
BL14-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

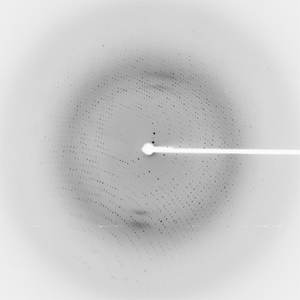

Dataset 178959_2_#####.mccd details
| Number of frames |
300 (1 - 300) |
| Distance [mm] |
300.0 |
| Oscillation width [°] |
0.30 |
| Phi [°] |
135.0 |
| Wavelength [Å] |
0.98086 |
| Experiment Date |
2012-04-12 |
| Equipment |
BL14-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|
