Diffraction project datasets EK5976M_3dxp

  • Method: MAD
  • Resolution: 2.32 Å
  • Space group: P 21 21 2
Download all images (3.1 GB)

PDB website for 3DXP
PDB validation report for 3DXP

doi:10.18430/M33DXP

Project details

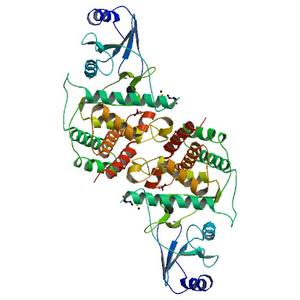

Title Crystal structure of a putative aminoglycoside phosphotransferase (reut_a1007) from ralstonia eutropha jmp134 at 2.32 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.24 / 0.29
Unit cell edges [Å] 62.09 x 127.52 x 51.51
Unit cell angles [°] 90.0, 90.0, 90.0

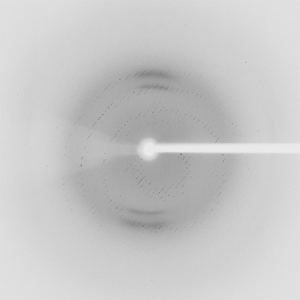

Dataset 88778_1_E1_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 300.0
Oscillation width [°] 1.00
Phi [°] 114.0
Wavelength [Å] 0.97971
Experiment Date 2008-06-26
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

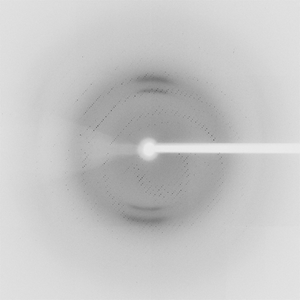

Dataset 88778_1_E2_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 300.0
Oscillation width [°] 1.00
Phi [°] 114.0
Wavelength [Å] 0.91837
Experiment Date 2008-06-26
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

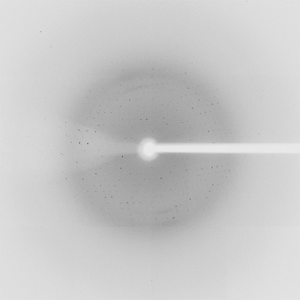

Dataset 88778_2_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 300.0
Oscillation width [°] 1.00
Phi [°] 1.0
Wavelength [Å] 0.97956
Experiment Date 2008-06-26
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
