Diffraction project datasets EK2269C_3jr1

  • Method: MAD
  • Resolution: 2.32 Å
  • Space group: C 1 2 1
Download all images (6.9 GB)

PDB website for 3JR1
PDB validation report for 3JR1

doi:10.18430/M33JR1

Project details

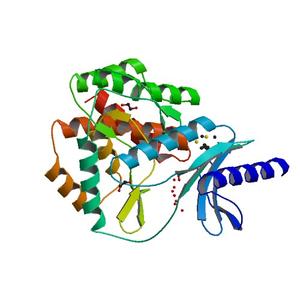

Title Crystal structure of Putative fructosamine-3-kinase (YP_719053.1) from HAEMOPHILUS SOMNUS 129PT at 2.32 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.20 / 0.24
Unit cell edges [Å] 137.31 x 85.63 x 99.01
Unit cell angles [°] 90.0, 132.9, 90.0

Dataset 120448_1_E1_###.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 320.0
Oscillation width [°] 1.00
Phi [°] 54.0
Wavelength [Å] 0.97936
Experiment Date 2009-05-14
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

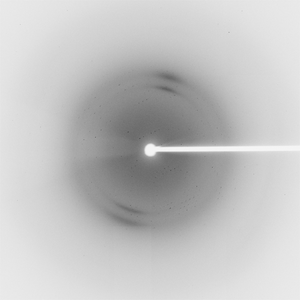

Dataset 120448_1_E2_###.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 320.0
Oscillation width [°] 1.00
Phi [°] 54.0
Wavelength [Å] 0.91837
Experiment Date 2009-05-14
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

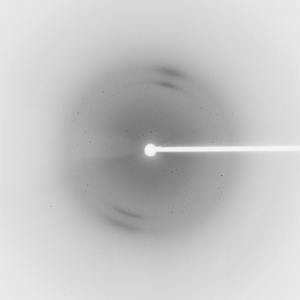

Dataset 120448_2_###.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 320.0
Oscillation width [°] 1.00
Phi [°] 54.0
Wavelength [Å] 0.97922
Experiment Date 2009-05-14
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
