Diffraction project datasets EK14125A_3dxq

  • Method: MAD
  • Resolution: 2.55 Å
  • Space group: P 21 21 2
Download all images (3.9 GB)

PDB website for 3DXQ
PDB validation report for 3DXQ

doi:10.18430/M33DXQ

Project details

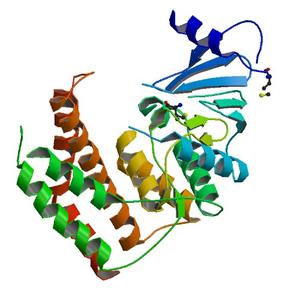

Title Crystal structure of choline/ethanolamine kinase family protein (NP_106042.1) from MESORHIZOBIUM LOTI at 2.55 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.24 / 0.28
Unit cell edges [Å] 102.07 x 173.62 x 39.93
Unit cell angles [°] 90.0, 90.0, 90.0

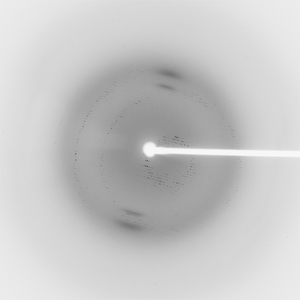

Dataset 86977_1_###.mccd details

Number of frames 100 (1 - 100)
Distance [mm] 310.0
Oscillation width [°] 1.00
Phi [°] 250.0
Wavelength [Å] 0.97882
Experiment Date 2008-06-15
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

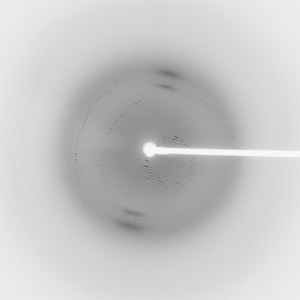

Dataset 86977_2_E1_###.mccd details

Number of frames 100 (1 - 100)
Distance [mm] 310.0
Oscillation width [°] 1.00
Phi [°] 250.0
Wavelength [Å] 0.97949
Experiment Date 2008-06-15
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

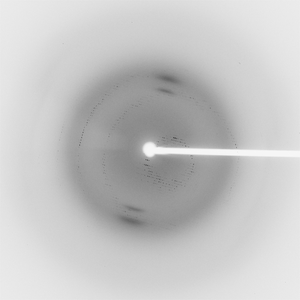

Dataset 86977_2_E2_###.mccd details

Number of frames 100 (1 - 100)
Distance [mm] 310.0
Oscillation width [°] 1.00
Phi [°] 250.0
Wavelength [Å] 0.91837
Experiment Date 2008-06-15
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
