Diffraction project datasets EF3048_2i5i
Project details
| Title |

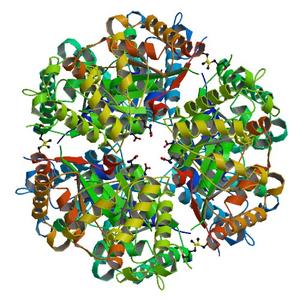

CRYSTAL STRUCTURE OF A PUTATIVE CELLOBIOSE-PHOSPHATE CLEAVAGE PROTEIN (EF3048) FROM ENTEROCOCCUS FAECALIS V583 AT 1.70 A RESOLUTION |
| Authors |
Joint Center for Structural Genomics (JCSG) |
| Bioentity |
None |
| R / Rfree |
0.14 / 0.19 |
| Unit cell edges [Å] |
130.53 x
130.53 x
85.76
|
| Unit cell angles [°] |
90.0,
90.0,
120.0
|
Dataset 24756_1_E1_###.img details
| Number of frames |
90 (1 - 90) |
| Distance [mm] |
225.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
177.0 |
| Wavelength [Å] |
0.97929 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

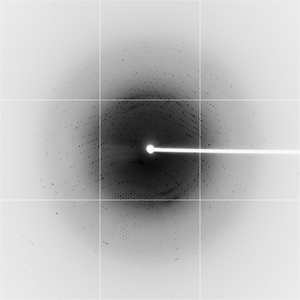

Dataset 24756_1_E2_###.img details
| Number of frames |
90 (1 - 90) |
| Distance [mm] |
225.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
177.0 |
| Wavelength [Å] |
0.91837 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

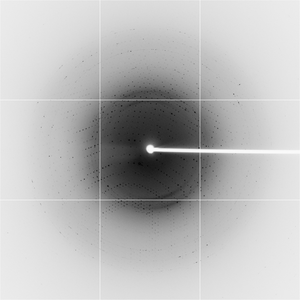

Dataset 24756_2_###.img details
| Number of frames |
90 (1 - 90) |
| Distance [mm] |
225.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
177.0 |
| Wavelength [Å] |
0.97898 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

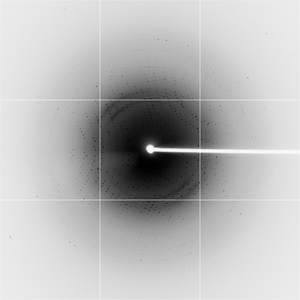

Dataset 24756_3_E1_###.img details
| Number of frames |
33 (1 - 33) |
| Distance [mm] |
225.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
267.0 |
| Wavelength [Å] |
0.97929 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

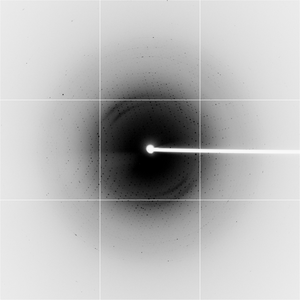

Dataset 24756_3_E2_###.img details
| Number of frames |
33 (1 - 33) |
| Distance [mm] |
225.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
267.0 |
| Wavelength [Å] |
0.91837 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

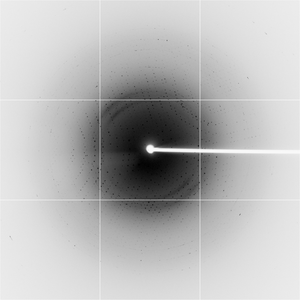

Dataset 24756_4_###.img details
| Number of frames |
33 (1 - 33) |
| Distance [mm] |
225.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
267.0 |
| Wavelength [Å] |
0.97898 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|
