Diffraction project datasets ChtrB_19241_a_D11_7u4h
- Resolution: 3.1 Å
- Space group: H 3 2
PDB website for 7U4H
PDB validation report for 7U4H
doi:10.18430/M37U4H
Project details

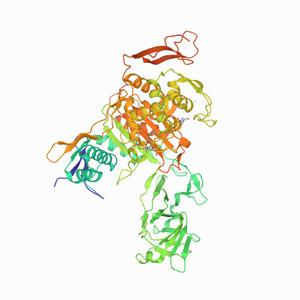

| Title | Crystal Structure of Penicillin-binding protein 1A (Pbp1a) from Chlamydia trachomatis |
| Authors | Seattle Structural Genomics Center for Infectious Disease (SSGCID) |
| R / Rfree | 0.19 / 0.22 |
| Unit cell edges [Å] | 175.79 x 175.79 x 339.70 |
| Unit cell angles [°] | 90.0, 90.0, 120.0 |

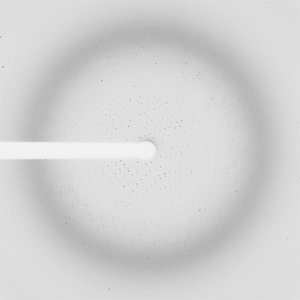

Dataset hio1-1.### details
| Number of frames | 140 (1 - 140) |
| Distance [mm] | 400.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 90.0 |
| Wavelength [Å] | 0.97872 |
| Experiment Date | 2020-07-02 |
| Equipment | 21-ID-F at APS (Advanced Photon Source) |
