Diffraction project datasets CajeA_19923_a_LA1-apo_8uz8
- Resolution: 2.45 Å
- Space group: P 21 21 2
Uniprot website for Q0PAA2
PDB website for 8UZ8
PDB validation report for 8UZ8
doi:10.18430/m38uz8
Project details

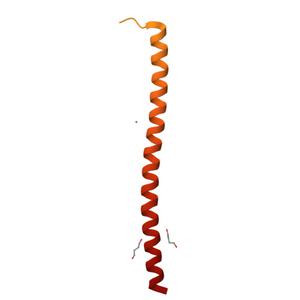

| Title | Crystal Structure of CiaD from Campylobacter jejuni (C-terminal fragment, Orthorhombic P form) |
| Authors | Seattle Structural Genomics Center for Infectious Disease, Seattle Structural Genomics Center for Infectious Disease (SSGCID) |
| R / Rfree | 0.21 / 0.25 |
| Unit cell edges [Å] | 46.96 x 139.93 x 21.20 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

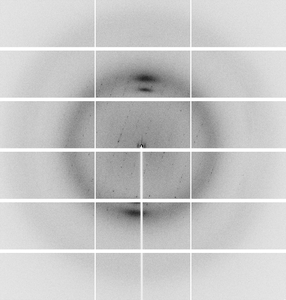

Dataset PSL-1703_2230_master.h5@##### details
| Number of frames | 900 (1 - 900) |
| Distance [mm] | 200.0 |
| Oscillation width [°] | 0.20 |
| Wavelength [Å] | 0.97949 |
| Equipment | 19-ID 2 at NSLS II (National Synchrotron Light Source II) |
