Diffraction project datasets CYP7A1_hv304_3dax
- Resolution: 2.15 Å
- Space group: P 1
PDB website for 3DAX
PDB validation report for 3DAX
doi:10.18430/m33dax
Project details

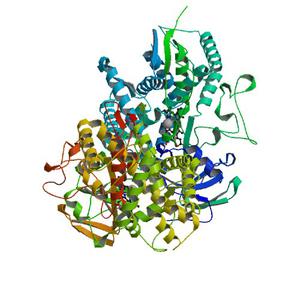

| Title | Crystal structure of human CYP7A1 |
| Authors | Strushkevich, N.V., Tempel, W., Dombrovski, L., Dong, A., Loppnau, P., Arrowsmith, C.H., Edwards, A.M., Bountra, C., Wilkstrom, M., Bochkarev, A., Park, H., Structural Genomics Consortium (SGC) |
| R / Rfree | 0.19 / 0.23 |
| Unit cell edges [Å] | 55.34 x 80.16 x 84.94 |
| Unit cell angles [°] | 64.4, 75.2, 72.2 |

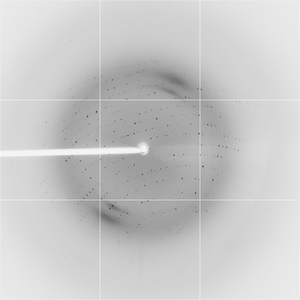

Dataset hv3.4_###.img details
| Number of frames | 360 (1 - 360) |
| Distance [mm] | 300.0 |
| Oscillation width [°] | 1.00 |
| Omega [°] | 0.5 |
| Phi [°] | 0.5 |
| Wavelength [Å] | 0.96860 |
| Experiment Date | 2007-09-21 |
| Equipment | X25 at NSLS (National Synchrotron Light Source) |
