Diffraction project datasets CPX200302_5T87
- Resolution: 2.4 Å
- Space group: P 61 2 2
PDB website for 5T87
PDB validation report for 5T87
doi:10.18430/m35t87
Project details

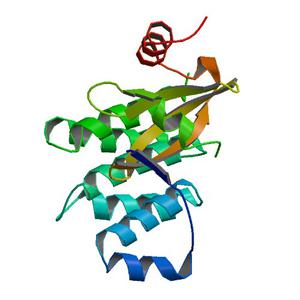

| Title | Crystal structure of CDI complex from Cupriavidus taiwanensis LMG 19424 |
| Authors | Michalska, K., Joachimiak, G., Jedrzejczak, R., Hayes, C.S., Goulding, C.W., Joachimiak, A., Structure-Function Analysis of Polymorphic CDI Toxin-Immunity Protein Complexes , Midwest Center for Structural Genomics (MCSG) |
| R / Rfree | 0.22 / 0.25 |
| Unit cell edges [Å] | 107.10 x 107.10 x 315.27 |
| Unit cell angles [°] | 90.0, 90.0, 120.0 |

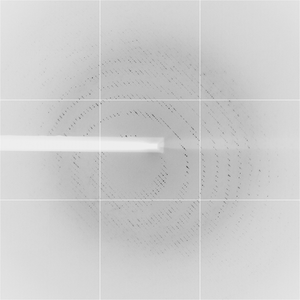

Dataset cdi19_Proc_e1_x4_data.####.img details
| Number of frames | 50 (1 - 50) |
| Distance [mm] | 350.0 |
| Oscillation width [°] | 1.00 |
| Omega [°] | -20.0 |
| Wavelength [Å] | 0.97915 |
| Experiment Date | 2014-08-23 |
| Equipment | 19-ID at APS (Advanced Photon Source) |

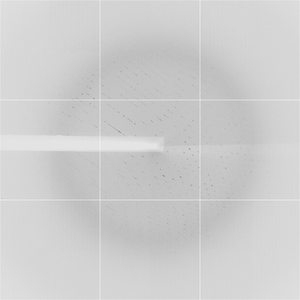

Dataset cdi19_proC_E1_x2_data.####.img details
| Number of frames | 100 (1 - 100) |
| Distance [mm] | 350.0 |
| Oscillation width [°] | 1.00 |
| Omega [°] | -90.0 |
| Wavelength [Å] | 0.97915 |
| Experiment Date | 2014-08-23 |
| Equipment | 19-ID at APS (Advanced Photon Source) |
