Diffraction project datasets CP20740B_4dn6
- Method: MAD
- Resolution: 2.8 Å
- Space group: P 42 21 2
PDB website for 4DN6
PDB validation report for 4DN6
doi:10.18430/M34DN6
Project details

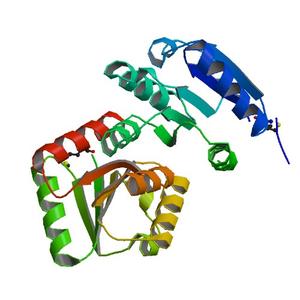

| Title | Crystal structure of a putative pilus assembly protein (cpaE) from Burkholderia thailandensis E264 at 2.80 A resolution |
| Authors | JOINT CENTER FOR STRUCTURAL GENOMICS (JCSG), Shapiro, L. |
| Bioentity | None |
| R / Rfree | 0.21 / 0.24 |
| Unit cell edges [Å] | 116.11 x 116.11 x 45.83 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

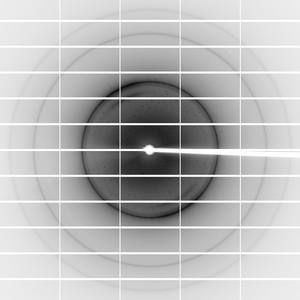

Dataset 173330_1_#####.cbf details
| Number of frames | 200 (1 - 200) |
| Distance [mm] | 350.0 |
| Oscillation width [°] | 0.50 |
| Phi [°] | 92.0 |
| Wavelength [Å] | 0.97895 |
| Equipment | BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |

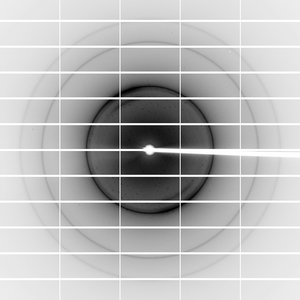

Dataset 173330_2_#####.cbf details
| Number of frames | 180 (1 - 180) |
| Distance [mm] | 350.0 |
| Oscillation width [°] | 0.50 |
| Phi [°] | 92.0 |
| Wavelength [Å] | 0.91837 |
| Equipment | BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |
