Diffraction project datasets CP20738C_3t6k

  • Method: MAD
  • Resolution: 1.86 Å
  • Space group: P 61 2 2
Download all images (7.8 GB)

PDB website for 3T6K
PDB validation report for 3T6K

doi:10.18430/M33T6K

Project details

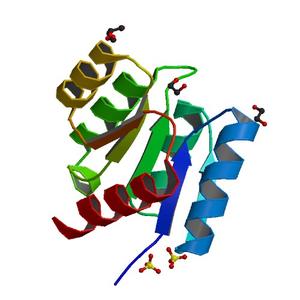

Title Crystal structure of a putative response regulator (Caur_3799) from Chloroflexus aurantiacus J-10-fl at 1.86 A resolution
Authors Joint center for structural genomics (JCSG), Shapiro, L.
Bioentity None
R / Rfree 0.16 / 0.18
Unit cell edges [Å] 106.50 x 106.50 x 137.98
Unit cell angles [°] 90.0, 90.0, 120.0

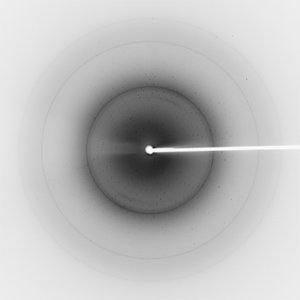

Dataset 168750_1_E1_####.mccd details

Number of frames 200 (1 - 200)
Distance [mm] 250.0
Oscillation width [°] 0.50
Wavelength [Å] 0.97916
Experiment Date 2011-07-20
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

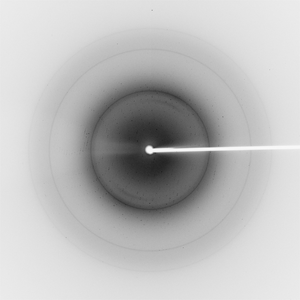

Dataset 168750_1_E2_####.mccd details

Number of frames 200 (1 - 200)
Distance [mm] 250.0
Oscillation width [°] 0.50
Wavelength [Å] 0.91837
Experiment Date 2011-07-20
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

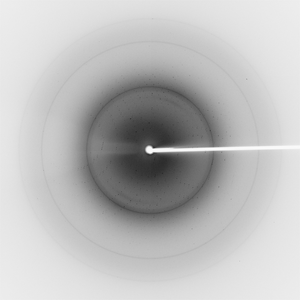

Dataset 168750_2_####.mccd details

Number of frames 160 (1 - 160)
Distance [mm] 250.0
Oscillation width [°] 0.50
Wavelength [Å] 0.97876
Experiment Date 2011-07-20
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
