Diffraction project datasets CM7979A_2qdr

  • Method: MAD
  • Resolution: 2.6 Å
  • Space group: P 62 2 2
Download all images (4.5 GB)

PDB website for 2QDR
PDB validation report for 2QDR

doi:10.18430/M32QDR

Project details

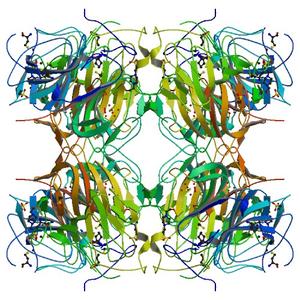

Title Crystal structure of a putative dioxygenase (npun_f5605) from nostoc punctiforme pcc 73102 at 2.60 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.24 / 0.29
Unit cell edges [Å] 102.10 x 102.10 x 250.81
Unit cell angles [°] 90.0, 90.0, 120.0

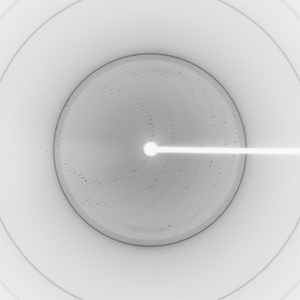

Dataset 47739_1_E1_###.mccd details

Number of frames 120 (1 - 120)
Distance [mm] 380.0
Oscillation width [°] 1.00
Phi [°] 134.0
Wavelength [Å] 0.97916
Experiment Date 2007-04-07
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

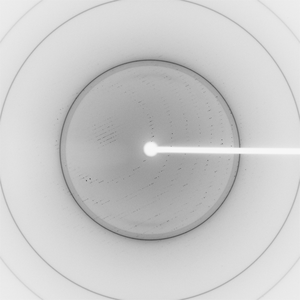

Dataset 47739_1_E2_###.mccd details

Number of frames 120 (1 - 120)
Distance [mm] 380.0
Oscillation width [°] 1.00
Phi [°] 134.0
Wavelength [Å] 0.91837
Experiment Date 2007-04-07
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

Dataset 47739_2_###.mccd details

Number of frames 120 (1 - 120)
Distance [mm] 380.0
Oscillation width [°] 1.00
Phi [°] 134.0
Wavelength [Å] 0.97883
Experiment Date 2007-04-07
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
