Diffraction project datasets CM5490D_2pfx

  • Method: MAD
  • Resolution: 1.7 Å
  • Space group: P 63
Download all images (4.1 GB)

PDB website for 2PFX
PDB validation report for 2PFX

doi:10.18430/M32PFX

Project details

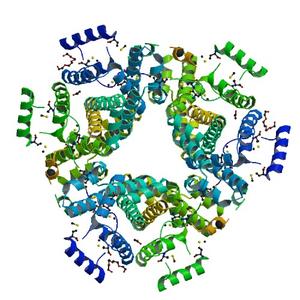

Title Crystal structure of uncharacterized peroxidase-related protein (YP_614459.1) from Silicibacter sp. TM1040 at 1.70 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
Unit cell edges [Å] 85.07 x 85.07 x 105.62
Unit cell angles [°] 90.0, 90.0, 120.0

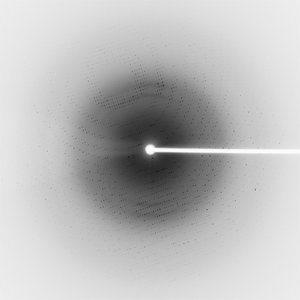

Dataset 33758_1_E1_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 260.0
Oscillation width [°] 1.00
Phi [°] 157.0
Wavelength [Å] 0.97929
Experiment Date 2007-02-01
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

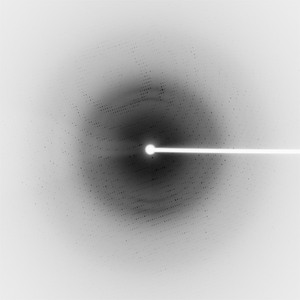

Dataset 33758_1_E2_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 260.0
Oscillation width [°] 1.00
Phi [°] 157.0
Wavelength [Å] 0.91837
Experiment Date 2007-02-01
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

Dataset 33758_2_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 260.0
Oscillation width [°] 1.00
Phi [°] 157.0
Wavelength [Å] 0.97908
Experiment Date 2007-02-01
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
