Diffraction project datasets CC1_10_TGATGAGCAG_EVE_9yzn
- Resolution: 3.16 Å
- Space group: I 1 2 1
Uniprot website for P06602

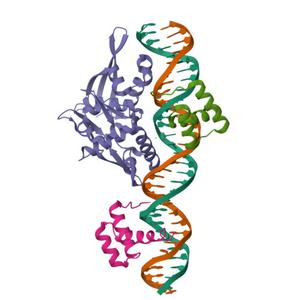

PDB website for 9YZN
PDB validation report for 9YZN
doi:10.18430/M39YZN
Project details
| Title | Isoreticular co-crystal 1 with asymmetrical expanded duplex (31mer) containing insert sequence TGATGAGCAG and loaded with Even-skipped homeodomain |
| Authors | Shields, E.T., Slaughter, C.K., Magna, E.N., Snow, C.D. |
| R / Rfree | 0.26 / 0.28 |
| Unit cell edges [Å] | 76.03 x 124.86 x 139.09 |
| Unit cell angles [°] | 90.0, 91.8, 90.0 |

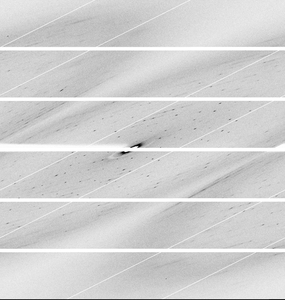

Dataset run_61_#####.cbf details
| Number of frames | 900 (1 - 900) |
| Distance [mm] | 350.0 |
| Oscillation width [°] | 0.20 |
| Omega [°] | -267.73 |
| Wavelength [Å] | 1.00004 |
| Equipment | 8.2.1 at ALS (Advanced Light Source) |

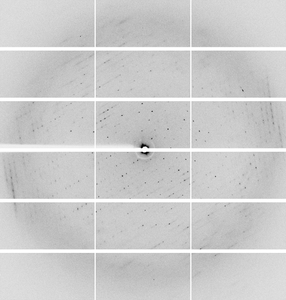

Dataset run_61_192_master.h5@##### details
| Number of frames | 900 (1 - 900) |
| Distance [mm] | 350.0 |
| Oscillation width [°] | 0.20 |
| Omega [°] | -267.73 |
| Wavelength [Å] | 1.00004 |
| Equipment | 8.2.1 at ALS (Advanced Light Source) |
