Diffraction project datasets CC1_10_TGATGAGCAG_ENH_9yzq
- Resolution: 3.75 Å
- Space group: I 1 2 1
Uniprot website for P42212
PDB website for 9YZQ
PDB validation report for 9YZQ
doi:10.18430/M39YZQ
Project details

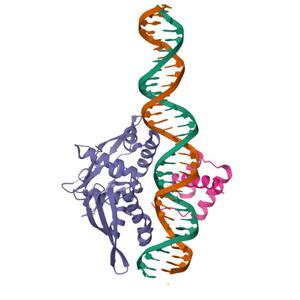

| Title | Isoreticular co-crystal 1 with asymmetrical expanded duplex (31mer) containing insert sequence TGATGAGCAG and loaded with Engrailed homeodomain enhanced Green fluorescent protein fusion |
| Authors | Shields, E.T., Slaughter, C.K., Magna, E.N., Snow, C.D. |
| R / Rfree | 0.30 / 0.34 |
| Unit cell edges [Å] | 74.12 x 122.40 x 140.44 |
| Unit cell angles [°] | 90.0, 90.4, 90.0 |

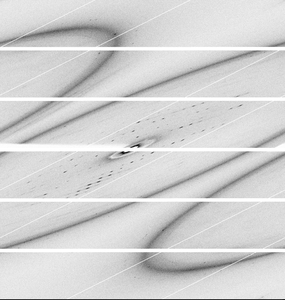

Dataset run_19_#####.cbf details
| Number of frames | 900 (1 - 900) |
| Distance [mm] | 350.0 |
| Oscillation width [°] | 0.20 |
| Wavelength [Å] | 1.00000 |
| Equipment | 8.2.1 at ALS (Advanced Light Source) |
