Diffraction project datasets CC1_10_TAATTAGGCCG_ANTP_9yzt
- Resolution: 3.3 Å
- Space group: I 1 2 1
Uniprot website for P02833
PDB website for 9YZT
PDB validation report for 9YZT
doi:10.18430/M39YZT
Project details

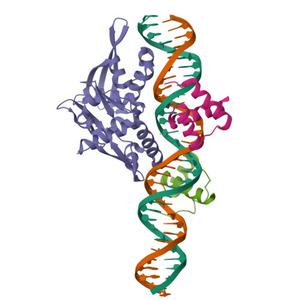

| Title | Isoreticular co-crystal 1 with asymmetrical expanded duplex (31mer) containing insert sequence TAATTAGGCCG and loaded with Antennapedia homeodomain |
| Authors | Shields, E.T., Slaughter, C.K., Magna, E.N., Snow, C.D. |
| R / Rfree | 0.28 / 0.29 |
| Unit cell edges [Å] | 72.75 x 126.04 x 134.95 |
| Unit cell angles [°] | 90.0, 90.2, 90.0 |

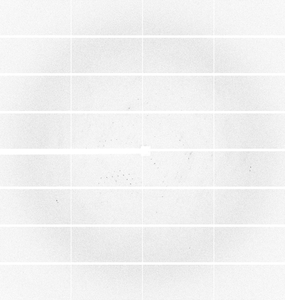

Dataset bzip_3_2_1_######.cbf details
| Number of frames | 560 (1 - 560) |
| Distance [mm] | 400.0 |
| Oscillation width [°] | 0.20 |
| Wavelength [Å] | 0.97905 |
| Equipment | 8.2.1 at ALS (Advanced Light Source) |

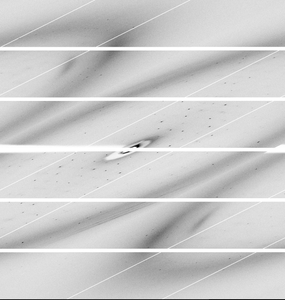

Dataset run_15_#####.cbf details
| Number of frames | 900 (1 - 900) |
| Distance [mm] | 350.0 |
| Oscillation width [°] | 0.20 |
| Wavelength [Å] | 1.00005 |
| Equipment | 8.2.1 at ALS (Advanced Light Source) |
