Diffraction project datasets CC1_10_CTAATTAGGC_EVE_9yzl
- Resolution: 3.02 Å
- Space group: I 1 2 1
Uniprot website for P06602
PDB website for 9YZL
PDB validation report for 9YZL
doi:10.18430/M39YZL
Project details

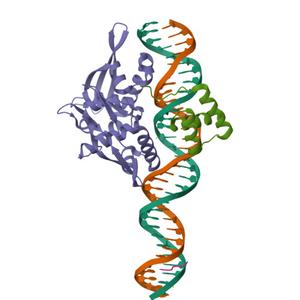

| Title | Isoreticular co-crystal of Replication Initiator Protein REPE54 and asymmetrical expanded duplex (31mer) containing the cognate REPE54 sequence, and additional T-A rich sequence with 5' terminal phosphates. Two copies of Even-skipped homeodomain loaded post-crystallization |
| Authors | Shields, E.T., Slaughter, C.K., Magna, E.N., Snow, C.D. |
| R / Rfree | 0.28 / 0.29 |
| Unit cell edges [Å] | 73.37 x 120.29 x 134.40 |
| Unit cell angles [°] | 90.0, 91.5, 90.0 |

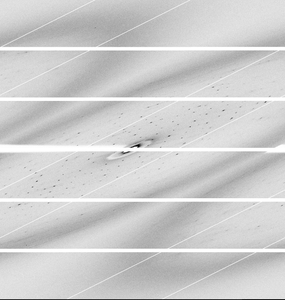

Dataset run_8_#####.cbf details
| Number of frames | 900 (1 - 900) |
| Distance [mm] | 350.0 |
| Oscillation width [°] | 0.20 |
| Omega [°] | -267.73 |
| Wavelength [Å] | 1.00004 |
| Equipment | 8.2.1 at ALS (Advanced Light Source) |

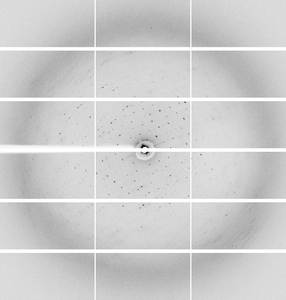

Dataset run_8_101_master.h5@##### details
| Number of frames | 900 (1 - 900) |
| Distance [mm] | 350.0 |
| Oscillation width [°] | 0.20 |
| Omega [°] | -267.73 |
| Wavelength [Å] | 1.00004 |
| Equipment | 8.2.1 at ALS (Advanced Light Source) |
