Diffraction project datasets CC1_10_ATGAGTCAT_bZip_9z4e
- Resolution: 3.63 Å
- Space group: C 1 2 1
Uniprot website for P03856
PDB website for 9Z4E
PDB validation report for 9Z4E
doi:10.18430/M39Z4E
Project details

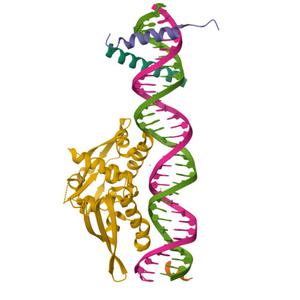

| Title | Isoreticular co-crystal 1 with asymmetrical expanded duplex (31mer) containing insert sequence CATGAGTCAT and loaded with mutated Bzip region of GCN4 transcription factor |
| Authors | Shields, E.T., Slaughter, C.K., Magna, E.N., Snow, C.D. |
| R / Rfree | 0.25 / 0.29 |
| Unit cell edges [Å] | 159.04 x 115.33 x 72.72 |
| Unit cell angles [°] | 90.0, 116.5, 90.0 |

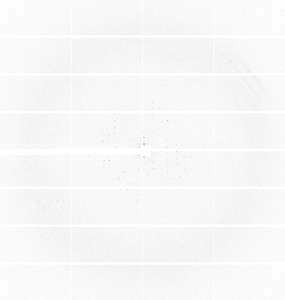

Dataset bzip_14_1_######.cbf details
| Number of frames | 1800 (1 - 1800) |
| Distance [mm] | 450.0 |
| Oscillation width [°] | 0.20 |
| Wavelength [Å] | 0.97905 |
| Equipment | 24-ID-E at APS (Advanced Photon Source) |
