Diffraction project datasets C.MS20870A_4h87

  • Method: Molecular Replacement
  • Resolution: 1.55 Å
  • Space group: P 21 21 21
Download all images (2.9 GB)

PDB website for 4H87

doi:10.18430/M34H87

Project details

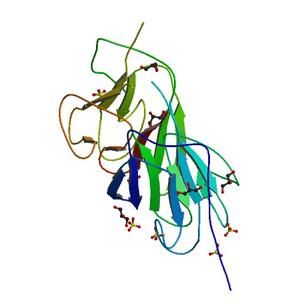

Title Crystal structure of a FHA domain of kanadaptin (SLC4A1AP) from Homo sapiens at 1.55 A resolution
Authors JOINT CENTER FOR STRUCTURAL GENOMICS (JCSG)
R / Rfree 0.18 / 0.20
Unit cell edges [Å] 34.77 x 82.14 x 82.47
Unit cell angles [°] 90.0, 90.0, 90.0

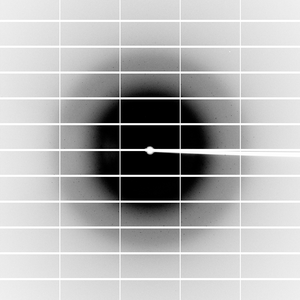

Dataset 185056_1_#####.cbf details

Number of frames 400 (1 - 400)
Distance [mm] 250.0
Oscillation width [°] 0.25
Phi [°] 29.0
Wavelength [Å] 0.97932
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

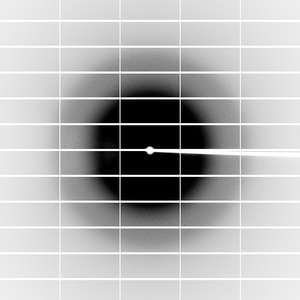

Dataset 185056_2_#####.cbf details

Number of frames 360 (1 - 360)
Distance [mm] 250.0
Oscillation width [°] 0.50
Wavelength [Å] 0.97932
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
