Diffraction project datasets C.LS20770A_4kwy

  • Method: MAD
  • Resolution: 2.4 Å
  • Space group: C 2 2 21
Download all images (2.9 GB)

PDB website for 4KWY
PDB validation report for 4KWY

doi:10.18430/M34KWY

Project details

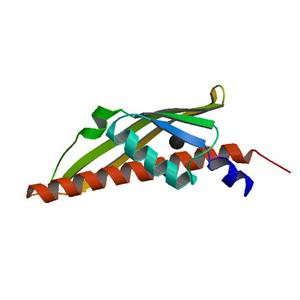

Title Crystal structure of a putative lipoprotein (CC_3750) from Caulobacter crescentus CB15 at 2.40 A resolution
Authors JOINT CENTER FOR STRUCTURAL GENOMICS (JCSG)
Bioentity None
R / Rfree 0.19 / 0.24
Unit cell edges [Å] 88.44 x 136.35 x 60.21
Unit cell angles [°] 90.0, 90.0, 90.0

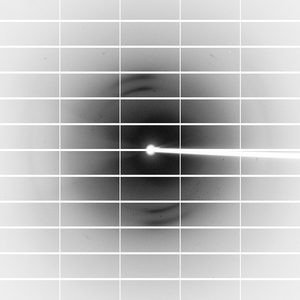

Dataset 194717_1_#####.cbf details

Number of frames 315 (1 - 315)
Distance [mm] 380.0
Oscillation width [°] 0.40
Wavelength [Å] 0.97805
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

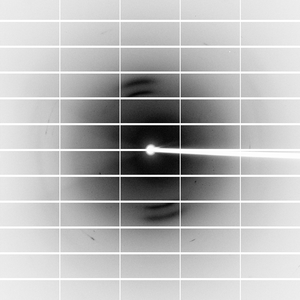

Dataset 194717_2_#####.cbf details

Number of frames 225 (1 - 225)
Distance [mm] 380.0
Oscillation width [°] 0.40
Wavelength [Å] 0.91837
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

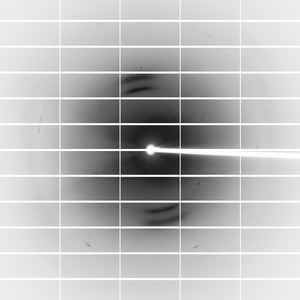

Dataset 194717_3_#####.cbf details

Number of frames 225 (1 - 225)
Distance [mm] 380.0
Oscillation width [°] 0.40
Wavelength [Å] 0.97871
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
