Diffraction project datasets C.KN20875A_4q98

  • Method: MAD
  • Resolution: 1.3 Å
  • Space group: P 1 21 1
Download all images (3.1 GB)

PDB website for 4Q98
PDB validation report for 4Q98

doi:10.18430/M34Q98

Project details

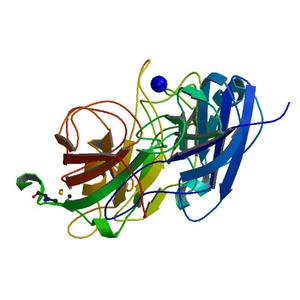

Title Crystal structure of a fimbrilin (fimA) from Porphyromonas gingivalis W83 at 1.30 A resolution (PSI Community Target, Nakayama)
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.12 / 0.16
Unit cell edges [Å] 36.40 x 67.64 x 65.58
Unit cell angles [°] 90.0, 90.5, 90.0

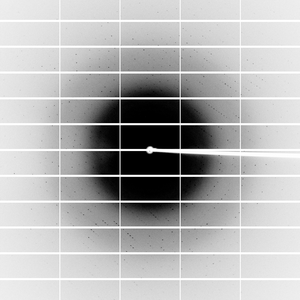

Dataset 201938_1_#####.cbf details

Number of frames 240 (1 - 240)
Distance [mm] 270.0
Oscillation width [°] 0.50
Phi [°] 341.0
Wavelength [Å] 0.97849
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

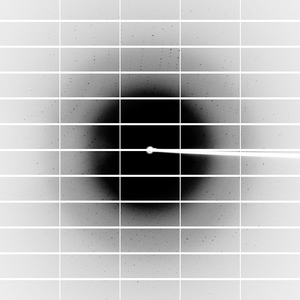

Dataset 201938_2_#####.cbf details

Number of frames 240 (1 - 240)
Distance [mm] 270.0
Oscillation width [°] 0.50
Phi [°] 461.0
Wavelength [Å] 0.97849
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

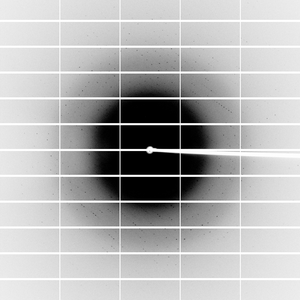

Dataset 201938_3_#####.cbf details

Number of frames 360 (1 - 360)
Distance [mm] 270.0
Oscillation width [°] 0.50
Phi [°] 341.0
Wavelength [Å] 0.91837
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
