Diffraction project datasets C.KN13462A_4qdg
- Method: MAD
- Resolution: 2.2 Å
- Space group: P 1 21 1
PDB website for 4QDG
PDB validation report for 4QDG
doi:10.18430/M34QDG
Project details

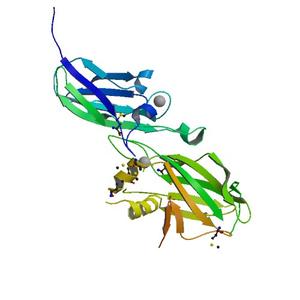

| Title | Crystal structure of a putative adhesin (BT2657) from Bacteroides thetaiotaomicron VPI-5482 at 2.20 A resolution (PSI Community Target, Nakayama) |
| Authors | Joint Center for Structural Genomics (JCSG) |
| Bioentity | None |
| R / Rfree | 0.17 / 0.22 |
| Unit cell edges [Å] | 42.80 x 102.32 x 74.47 |
| Unit cell angles [°] | 90.0, 98.4, 90.0 |

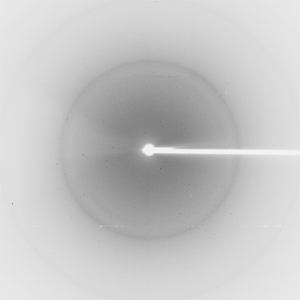

Dataset 201927_1_E1_#####.mccd details
| Number of frames | 360 (1 - 360) |
| Distance [mm] | 350.0 |
| Oscillation width [°] | 0.50 |
| Phi [°] | 54.0 |
| Wavelength [Å] | 0.97937 |
| Experiment Date | 2014-01-17 |
| Equipment | BL14-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |

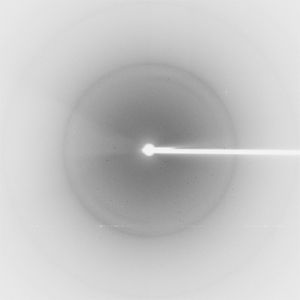

Dataset 201927_1_E2_#####.mccd details
| Number of frames | 360 (1 - 360) |
| Distance [mm] | 350.0 |
| Oscillation width [°] | 0.50 |
| Phi [°] | 54.0 |
| Wavelength [Å] | 0.95369 |
| Experiment Date | 2014-01-17 |
| Equipment | BL14-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |
