Diffraction project datasets ButhA_17888_a_AE1_6v91
- Resolution: 1.9 Å
- Space group: P 21 21 21
PDB website for 6V91
PDB validation report for 6V91
doi:10.18430/m36v91
Project details

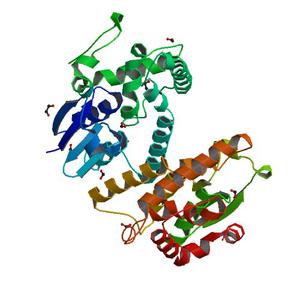

| Title | Crystal structure of Stringent starvation protein A (BTH_I2974) from Burkholderia thailandensis |
| Authors | Seattle Structural Genomics Center for Infectious Disease (SSGCID) |
| R / Rfree | 0.17 / 0.22 |
| Unit cell edges [Å] | 60.38 x 95.64 x 108.85 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

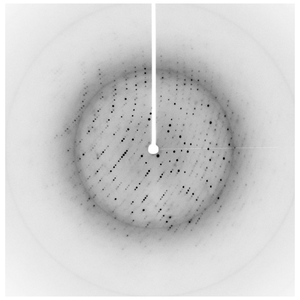

Dataset 311984h9_x_####.img details
| Number of frames | 720 (1 - 720) |
| Distance [mm] | 55.0 |
| Oscillation width [°] | 0.50 |
| Omega [°] | -90.0 |
| Wavelength [Å] | 1.54178 |
| Equipment | HOME_SOURCE at HOME_SOURCE (Home Source) |

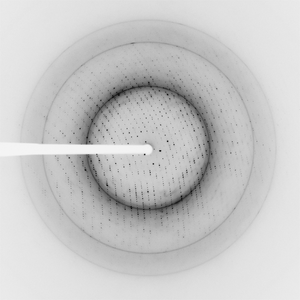

Dataset osc5-5.### details
| Number of frames | 150 (1 - 150) |
| Distance [mm] | 225.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 50.0 |
| Wavelength [Å] | 0.97872 |
| Experiment Date | 2019-11-21 |
| Equipment | HOME_SOURCE at HOME_SOURCE (Home Source) |
