Diffraction project datasets BupsA_00122_a_A1_6mwf
- Resolution: 1.75 Å
- Space group: C 1 2 1
PDB website for 6MWF
PDB validation report for 6MWF
doi:10.18430/m36mwf
Project details

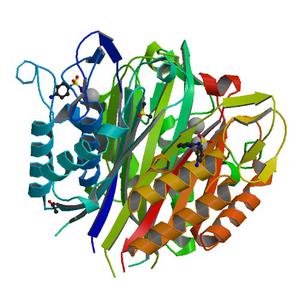

| Title | Crystal structure of 2C-methyl-D-erythritol 2,4-cyclodiphosphate synthase (IspF) Burkholderia pseudomallei in complex with ligand HGN-0459 |
| Authors | Seattle Structural Genomics Center for Infectious Disease (SSGCID) |
| R / Rfree | 0.15 / 0.18 |
| Unit cell edges [Å] | 117.03 x 67.93 x 60.76 |
| Unit cell angles [°] | 90.0, 96.6, 90.0 |

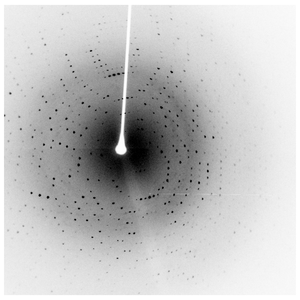

Dataset 300524b7_x####.img details
| Number of frames | 360 (1 - 360) |
| Distance [mm] | 50.0 |
| Oscillation width [°] | 0.50 |
| Omega [°] | -80.0 |
| Kappa / Chi [°] | 30.0 |
| Phi [°] | 135.0 |
| Wavelength [Å] | 1.54178 |
| Equipment | HOME_SOURCE at HOME_SOURCE (Home Source) |
Dataset 300524b7_x####.img details
| Number of frames | 120 (401 - 520) |
| Distance [mm] | 50.0 |
| Oscillation width [°] | 0.50 |
| Omega [°] | -65.0 |
| Kappa / Chi [°] | 15.0 |
| Phi [°] | 135.0 |
| Wavelength [Å] | 1.54178 |
| Equipment | HOME_SOURCE at HOME_SOURCE (Home Source) |
