Diffraction project datasets BumuA_00117_a_B1-ZN_9dr6
- Resolution: 1.75 Å
- Space group: C 1 2 1
Uniprot website for A0A0H3KXJ8
PDB website for 9DR6
PDB validation report for 9DR6
Project details

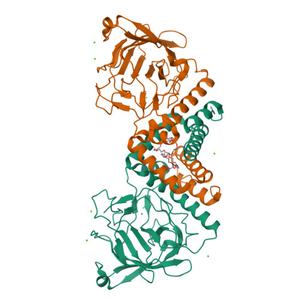

| Title | Crystal structure of Catechol 1,2-dioxygenase from Burkholderia multivorans (Zinc bound) |
| Authors | Seattle Structural Genomics Center for Infectious Disease, Seattle Structural Genomics Center for Infectious Disease (SSGCID) |
| R / Rfree | 0.15 / 0.19 |
| Unit cell edges [Å] | 115.25 x 52.27 x 120.63 |
| Unit cell angles [°] | 90.0, 92.5, 90.0 |

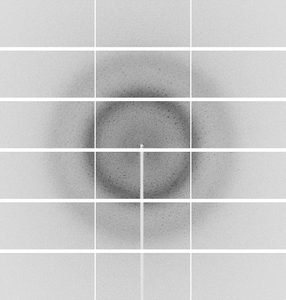

Dataset PSL-1603_424_master.h5@##### details
| Number of frames | 1800 (1 - 1800) |
| Distance [mm] | 140.0 |
| Oscillation width [°] | 0.20 |
| Wavelength [Å] | 0.97857 |
| Equipment | 19-ID 2 at NSLS II (National Synchrotron Light Source II) |
