Diffraction project datasets BrabA_00146_a_A1_6vh5
- Resolution: 2.4 Å
- Space group: C 1 2 1
PDB website for 6VH5
PDB validation report for 6VH5
doi:10.18430/m36vh5
Project details

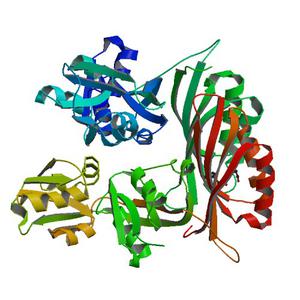

| Title | Crystal structure of prephenate dehydratase from brucella melitensis biovar abortus 2308 in complex with phenylalanine |
| Authors | Seattle Structural Genomics Center for Infectious Disease (SSGCID) |
| R / Rfree | 0.21 / 0.25 |
| Unit cell edges [Å] | 226.95 x 61.25 x 120.05 |
| Unit cell angles [°] | 90.0, 113.0, 90.0 |

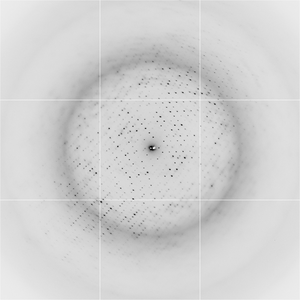

Dataset gej7-16_1_###.img details
| Number of frames | 220 (1 - 220) |
| Distance [mm] | 340.0 |
| Oscillation width [°] | 1.00 |
| Omega [°] | 60.0 |
| Phi [°] | 60.0 |
| Wavelength [Å] | 0.97740 |
| Experiment Date | 2010-07-22 |
| Equipment | 5.0.1 at ALS (Advanced Light Source) |
