Diffraction project datasets BaheA_00606_a_AE1_6wqm

  • Resolution: 2.15 Å
  • Space group: P 1 21 1
Download all images (11.0 GB)

PDB website for 6WQM
PDB validation report for 6WQM

doi:10.18430/m36wqm

Project details

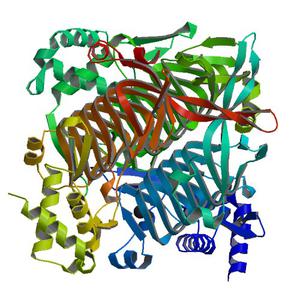

Title Crystal structure of 2,3,4,5-tetrahydropyridine-2-carboxylate N-succinyltransferase from Bartonella henselae
Authors Seattle Structural Genomics Center for Infectious Disease (SSGCID)
R / Rfree 0.21 / 0.25
Unit cell edges [Å] 68.84 x 228.22 x 71.19
Unit cell angles [°] 90.0, 120.1, 90.0

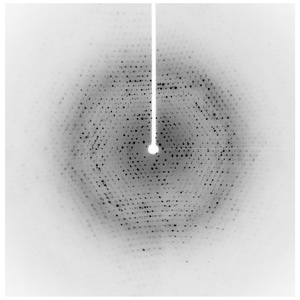

Dataset 312827b9_x_####.img details

Number of frames 1440 (1 - 1440)
Distance [mm] 55.0
Oscillation width [°] 0.25
Omega [°] -90.0
Wavelength [Å] 1.54178
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)

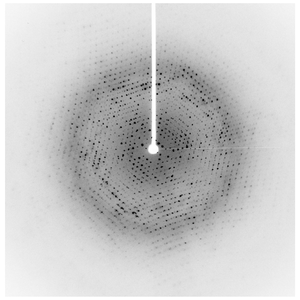

Dataset 312827b9_y1_####.img details

Number of frames 720 (1 - 720)
Distance [mm] 55.0
Oscillation width [°] 0.25
Omega [°] -90.0
Kappa / Chi [°] 15.0
Wavelength [Å] 1.54178
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)

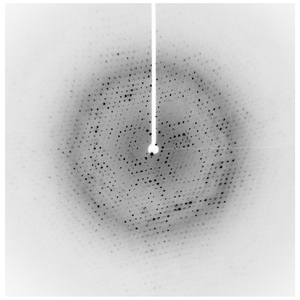

Dataset 312827b9_y2_####.img details

Number of frames 720 (1 - 720)
Distance [mm] 55.0
Oscillation width [°] 0.25
Omega [°] -90.0
Kappa / Chi [°] 15.0
Phi [°] 180.0
Wavelength [Å] 1.54178
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)
