Diffraction project datasets BJP1_3m8t
- Resolution: 1.33 Å
- Space group: P 1
PDB website for 3M8T
PDB validation report for 3M8T
doi:10.18430/m33m8t
Project details

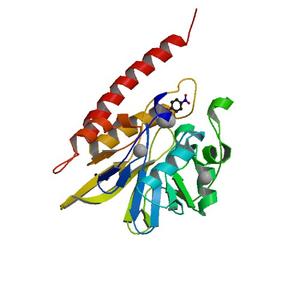

| Title | Crystal Structure of the complex between class B3 beta-lactamase BJP-1 and 4-nitrobenzene-sulfonamide |
| Authors | Docquier, J.D., Benvenuti, M., Calderone, V., Menciassi, N., Mangani, S. |
| R / Rfree | 0.14 / 0.18 |
| Unit cell edges [Å] | 42.33 x 44.76 x 76.62 |
| Unit cell angles [°] | 78.7, 89.4, 62.0 |

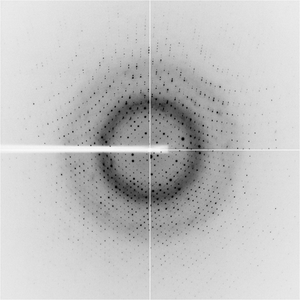

Dataset bjp_plate2-b3_1_###.img details
| Number of frames | 360 (1 - 360) |
| Distance [mm] | 120.0 |
| Oscillation width [°] | 1.00 |
| Wavelength [Å] | 0.93400 |
| Experiment Date | 2008-04-20 |
| Equipment | ID14-1 at ESRF (European Synchrotron Radiation Facility) |

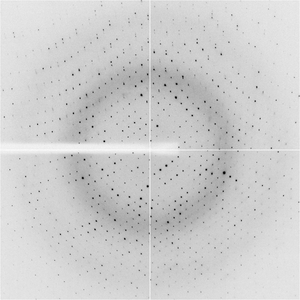

Dataset bjp_plate2-b3_LR_6_###.img details
| Number of frames | 183 (1 - 183) |
| Distance [mm] | 190.1 |
| Oscillation width [°] | 1.00 |
| Omega [°] | 184.0 |
| Phi [°] | 184.0 |
| Wavelength [Å] | 0.93400 |
| Experiment Date | 2008-04-20 |
| Equipment | ID14-1 at ESRF (European Synchrotron Radiation Facility) |

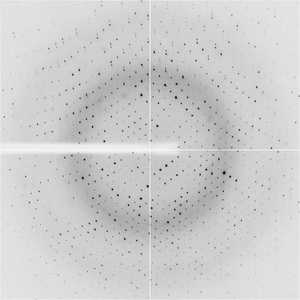

Dataset bjp_plate2-b3_LR_7_###.img details
| Number of frames | 108 (1 - 108) |
| Distance [mm] | 190.1 |
| Oscillation width [°] | 1.00 |
| Omega [°] | 184.0 |
| Phi [°] | 184.0 |
| Wavelength [Å] | 0.93400 |
| Experiment Date | 2008-04-20 |
| Equipment | ID14-1 at ESRF (European Synchrotron Radiation Facility) |

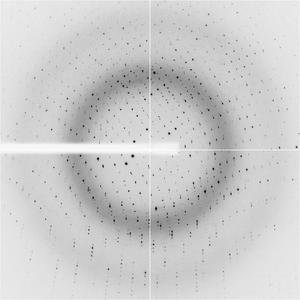

Dataset bjp_plate2-b3_LR_8_###.img details
| Number of frames | 80 (1 - 80) |
| Distance [mm] | 190.1 |
| Oscillation width [°] | 1.00 |
| Omega [°] | 292.0 |
| Phi [°] | 292.0 |
| Wavelength [Å] | 0.93400 |
| Experiment Date | 2008-04-20 |
| Equipment | ID14-1 at ESRF (European Synchrotron Radiation Facility) |
