Diffraction project datasets BAIE_4l8o

  • Method: Molecular Replacement
  • Resolution: 2.2 Å
  • Space group: H 3 2
Download all images (2.4 GB)

PDB website for 4L8O

doi:10.18430/M34L8O

Project details

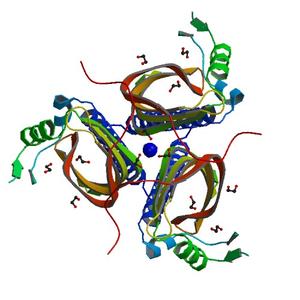

Title Crystal structure of a bile-acid 7-alpha dehydratase (CLOHYLEM_06634) from Clostridium hylemonae DSM 15053 at 2.20 A resolution
Authors Joint Center for Structural Genomics (JCSG)
R / Rfree 0.19 / 0.23
Unit cell edges [Å] 52.96 x 52.96 x 428.63
Unit cell angles [°] 90.0, 90.0, 120.0

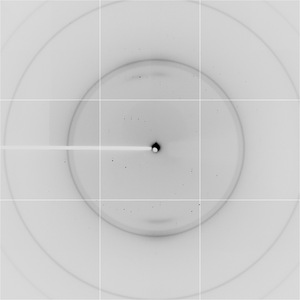

Dataset 185512_1_###.img details

Number of frames 220 (1 - 220)
Distance [mm] 330.0
Oscillation width [°] 0.50
Phi [°] 289.0
Wavelength [Å] 0.99994
Experiment Date 2012-09-19
Equipment 8.2.2 at ALS (Advanced Light Source)

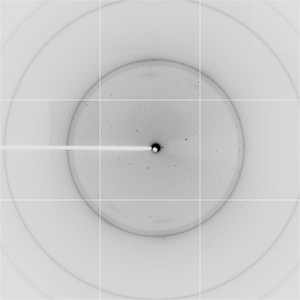

Dataset 185512_2_###.img details

Number of frames 180 (1 - 180)
Distance [mm] 330.0
Oscillation width [°] 0.50
Phi [°] 39.0
Wavelength [Å] 0.99994
Experiment Date 2012-09-19
Equipment 8.2.2 at ALS (Advanced Light Source)
