Diffraction project datasets AcbaC17876a_7sbc

  • Resolution: 1.95 Å
  • Space group: P 1
Download all images (1.9 GB)

PDB website for 7SBC
PDB validation report for 7SBC

doi:10.18430/m37sbc

Project details

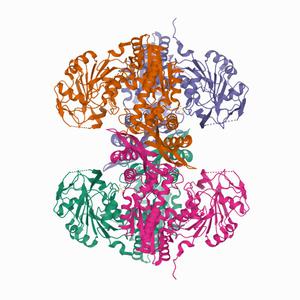

Title Crystal structure of a GMP synthase from Acinetobacter baumannii AB5075-UW
Authors Seattle Structural Genomics Center for Infectious Disease (SSGCID)
R / Rfree 0.18 / 0.21
Unit cell edges [Å] 81.00 x 83.18 x 104.35
Unit cell angles [°] 98.9, 109.8, 106.8

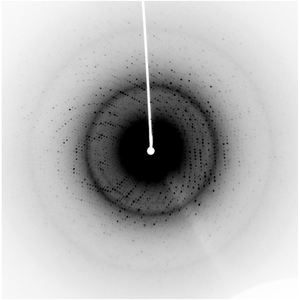

Dataset 320097d3_aa_####.img details

Number of frames 360 (1 - 360)
Distance [mm] 45.0
Oscillation width [°] 0.50
Omega [°] -90.0
Kappa / Chi [°] 30.0
Wavelength [Å] 1.54178
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)

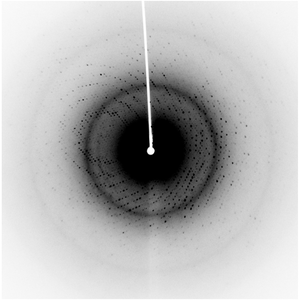

Dataset 320097d3_x_####.img details

Number of frames 360 (1 - 360)
Distance [mm] 45.0
Oscillation width [°] 0.50
Omega [°] -90.0
Wavelength [Å] 1.54178
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)

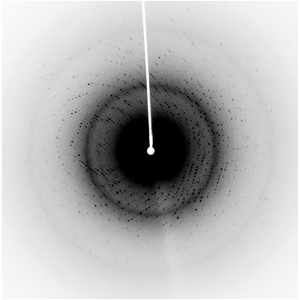

Dataset 320097d3_y_####.img details

Number of frames 360 (1 - 360)
Distance [mm] 45.0
Oscillation width [°] 0.50
Omega [°] -90.0
Kappa / Chi [°] 10.0
Wavelength [Å] 1.54178
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)

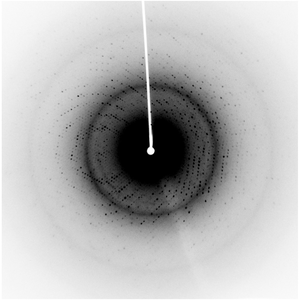

Dataset 320097d3_z_####.img details

Number of frames 360 (1 - 360)
Distance [mm] 45.0
Oscillation width [°] 0.50
Omega [°] -90.0
Kappa / Chi [°] 20.0
Wavelength [Å] 1.54178
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)
