Diffraction project datasets APC111801_4W9T
- Method: Molecular Replacement
- Resolution: 1.57 Å
- Space group: P 43 21 2
PDB website for 4W9T
PDB validation report for 4W9T
doi:10.18430/M34W9T
Project details

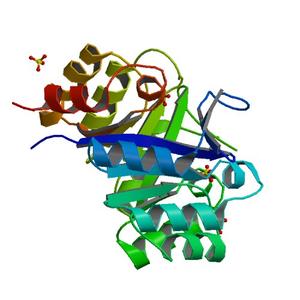

| Title | Crystal structure of HisAP from Streptomyces sp. Mg1 |
| Authors | MICHALSKA, K., VERDUZCO-CASTRO, E.A., ENDRES, M., BARONA-GOMEZ, F., JOACHIMIAK, A., MIDWEST CENTER FOR STRUCTURAL GENOMICS (MCSG) |
| Bioentity | None |
| R / Rfree | 0.15 / 0.18 |
| Unit cell edges [Å] | 69.33 x 69.33 x 126.93 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

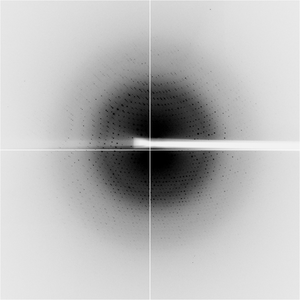

Dataset Mg1_HisAp_M1_H7_data.####.img details
| Number of frames | 100 (1 - 100) |
| Distance [mm] | 130.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | -70.0 |
| Wavelength [Å] | 0.97927 |
| Equipment | 19-BM at APS (Advanced Photon Source) |

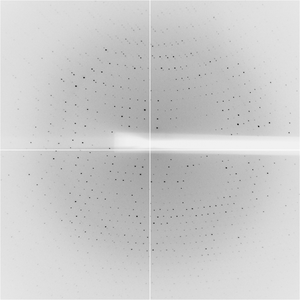

Dataset Mg1_HisAp_M1_H7_low.####.img details
| Number of frames | 130 (1 - 130) |
| Distance [mm] | 250.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | -70.0 |
| Wavelength [Å] | 0.97927 |
| Equipment | 19-BM at APS (Advanced Photon Source) |
