Diffraction project datasets APC108253_4KUN
- Method: SAD
- Resolution: 1.95 Å
- Space group: P 1 21 1
PDB website for 4KUN
PDB validation report for 4KUN
doi:10.18430/M34KUN
Project details

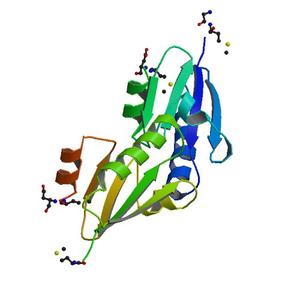

| Title | Crystal structure of Legionella pneumophila Lpp1115 / KaiB |
| Authors | Loza-Correa, M., Sahr, T., Rolando, M., Daniels, C., Petit, P., Skarina, T., Gomez Valero, L., Dervins-Ravault, D., Honore, N., Savchenko, A., Buchrieser, C. |
| Bioentity | None |
| R / Rfree | 0.19 / 0.25 |
| Unit cell edges [Å] | 40.83 x 46.05 x 45.08 |
| Unit cell angles [°] | 90.0, 105.6, 90.0 |

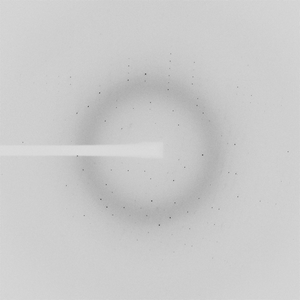

Dataset OTH0608-2.### details
| Number of frames | 400 (1 - 400) |
| Distance [mm] | 300.0 |
| Oscillation width [°] | 1.00 |
| Wavelength [Å] | 0.97934 |
| Equipment | 19-ID at APS (Advanced Photon Source) |

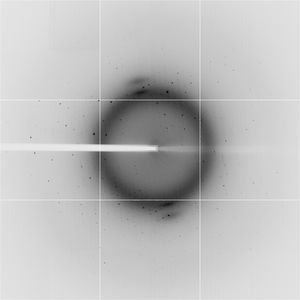

Dataset Zn_peak.####.img details
| Number of frames | 177 (1 - 177) |
| Distance [mm] | 199.9 |
| Oscillation width [°] | 1.00 |
| Phi [°] | -89.305 |
| Wavelength [Å] | 1.28281 |
| Equipment | 19-ID at APS (Advanced Photon Source) |

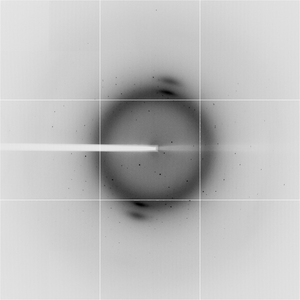

Dataset Zn_peak.####.img details
| Number of frames | 175 (186 - 360) |
| Distance [mm] | 199.9 |
| Oscillation width [°] | 1.00 |
| Phi [°] | -84.305 |
| Wavelength [Å] | 1.28281 |
| Equipment | 19-ID at APS (Advanced Photon Source) |
