Diffraction project datasets APC106683_4JGR
- Method: SAD
- Resolution: 2.4 Å
- Space group: P 21 21 21
PDB website for 4JGR
PDB validation report for 4JGR
doi:10.18430/M34JGR
Project details

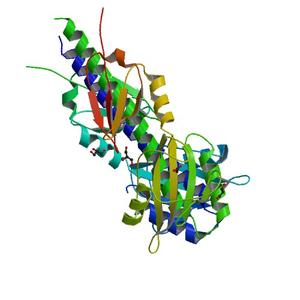

| Title | The crystal structure of sporulation kinase D mutant sensor domain, R131A, from Bacillus subtilis subsp at 2.4A resolution |
| Authors | Wu, R., Gu, M., Wilton, R., Babnigg, G., Kim, Y., Pokkuluri, P.R., Szurmant, H., Joachimiak, A., Schiffer, M. |
| Bioentity | None |
| R / Rfree | 0.20 / 0.25 |
| Unit cell edges [Å] | 76.66 x 83.42 x 91.01 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

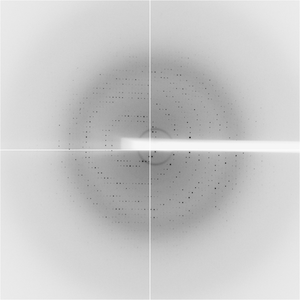

Dataset 2077R95A_3pk.####.img details
| Number of frames | 240 (1 - 240) |
| Distance [mm] | 200.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | -120.0 |
| Wavelength [Å] | 0.97903 |
| Equipment | 19-BM at APS (Advanced Photon Source) |
