Diffraction project datasets APC104043_4H3T
- Method: SAD
- Resolution: 2.03 Å
- Space group: I 41 2 2
PDB website for 4H3T
PDB validation report for 4H3T
doi:10.18430/M34H3T
Project details

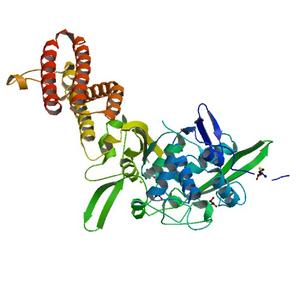

| Title | Crystal structure of CRISPR-associated protein Cse1 from Acidimicrobium ferrooxidans |
| Authors | Michalska, K., Stols, L., Clancy, S., Joachimiak, A. |
| Bioentity | None |
| R / Rfree | 0.18 / 0.20 |
| Unit cell edges [Å] | 137.02 x 137.02 x 203.54 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

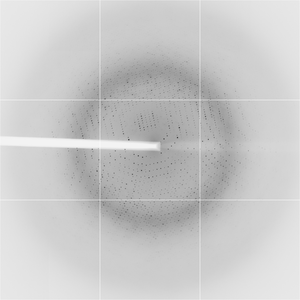

Dataset 4043_M3_H1_high.####.img details
| Number of frames | 120 (1 - 120) |
| Distance [mm] | 280.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | -120.0 |
| Wavelength [Å] | 0.97915 |
| Equipment | 19-ID at APS (Advanced Photon Source) |

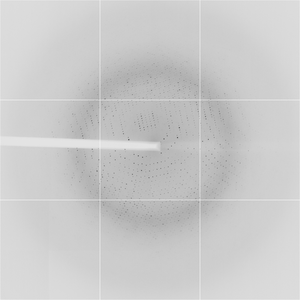

Dataset 4043_M3_H1_low.####.img details
| Number of frames | 90 (1 - 90) |
| Distance [mm] | 280.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | -120.0 |
| Wavelength [Å] | 0.97915 |
| Equipment | 19-ID at APS (Advanced Photon Source) |
