Diffraction project datasets APC102214_3UK0
- Method: SAD
- Resolution: 1.49 Å
- Space group: P 21 21 21
PDB website for 3UK0
PDB validation report for 3UK0
doi:10.18430/M33UK0
Project details

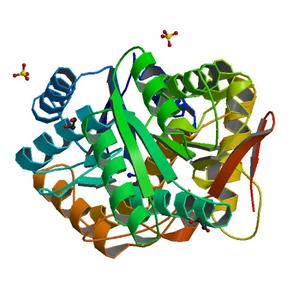

| Title | RPD_1889 protein, an extracellular ligand-binding receptor from Rhodopseudomonas palustris. |
| Authors | Tan, K., Chang, C., Cuff, M., Osipiuk, J., Landorf, E., Mack, J.C., Zerbs, S., Joachimiak, A., Collart, F.R. |
| Bioentity | None |
| R / Rfree | 0.14 / 0.19 |
| Unit cell edges [Å] | 43.27 x 71.58 x 105.00 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

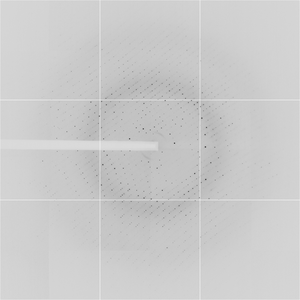

Dataset k4_b06.####.img details
| Number of frames | 187 (1 - 187) |
| Distance [mm] | 229.1 |
| Oscillation width [°] | 1.00 |
| Phi [°] | -120.0 |
| Wavelength [Å] | 0.97918 |
| Equipment | 19-ID at APS (Advanced Photon Source) |

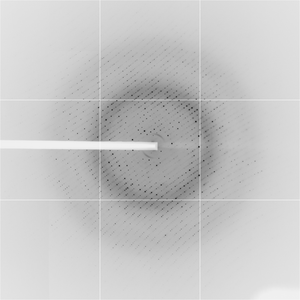

Dataset k4_b06_HR.####.img details
| Number of frames | 240 (1 - 240) |
| Distance [mm] | 201.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | -120.0 |
| Wavelength [Å] | 0.97918 |
| Equipment | 19-ID at APS (Advanced Photon Source) |
