Diffraction project datasets APC102101_3UO3
- Method: Molecular Replacement
- Resolution: 1.85 Å
- Space group: P 21 21 21
PDB website for 3UO3
doi:10.18430/M33UO3
Project details

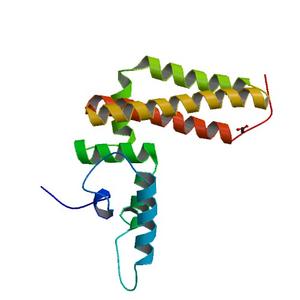

| Title | Jac1 co-chaperone from Saccharomyces cerevisiae, 5-182 clone |
| Authors | Ciesielski, S.J., Schilke, B.A., Osipiuk, J., Bigelow, L., Mulligan, R., Majewska, J., Joachimiak, A., Marszalek, J., Craig, E.A., Dutkiewicz, R. |
| R / Rfree | 0.19 / 0.24 |
| Unit cell edges [Å] | 59.79 x 60.45 x 108.89 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

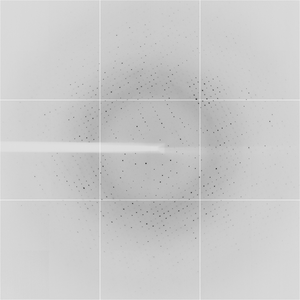

Dataset e6x_3.####.img details
| Number of frames | 176 (1 - 176) |
| Distance [mm] | 292.2 |
| Oscillation width [°] | 0.70 |
| Phi [°] | -80.0 |
| Wavelength [Å] | 0.97904 |
| Equipment | 19-ID at APS (Advanced Photon Source) |

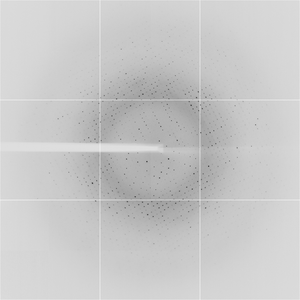

Dataset e6x_3.####.img details
| Number of frames | 185 (401 - 585) |
| Distance [mm] | 256.5 |
| Oscillation width [°] | 1.00 |
| Phi [°] | -80.0 |
| Wavelength [Å] | 0.97904 |
| Equipment | 19-ID at APS (Advanced Photon Source) |

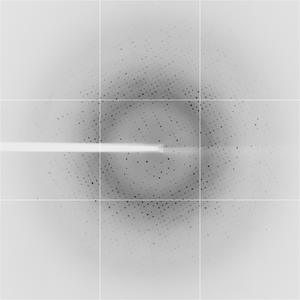

Dataset e6x_3.####.img details
| Number of frames | 200 (701 - 900) |
| Distance [mm] | 256.5 |
| Oscillation width [°] | 1.00 |
| Phi [°] | -80.0 |
| Wavelength [Å] | 0.97904 |
| Equipment | 19-ID at APS (Advanced Photon Source) |
