Diffraction project datasets APC102101_3UO2
- Method: Molecular Replacement
- Resolution: 2.13 Å
- Space group: P 21 21 21
PDB website for 3UO2
PDB validation report for 3UO2
doi:10.18430/M33UO2
Project details

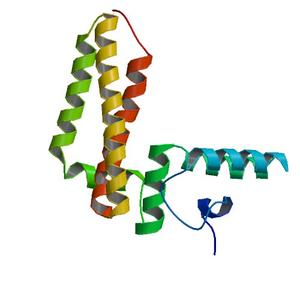

| Title | Jac1 co-chaperone from Saccharomyces cerevisiae |
| Authors | Ciesielski, S.J., Schilke, B.A., Osipiuk, J., Bigelow, L., Mulligan, R., Majewska, J., Joachimiak, A., Marszalek, J., Craig, E.A., Dutkiewicz, R. |
| Bioentity | None |
| R / Rfree | 0.21 / 0.27 |
| Unit cell edges [Å] | 59.61 x 60.55 x 99.52 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

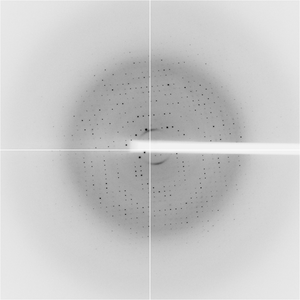

Dataset e6_9.####.img details
| Number of frames | 230 (1 - 230) |
| Distance [mm] | 194.7 |
| Oscillation width [°] | 1.00 |
| Phi [°] | -110.0 |
| Wavelength [Å] | 0.97929 |
| Equipment | 19-BM at APS (Advanced Photon Source) |

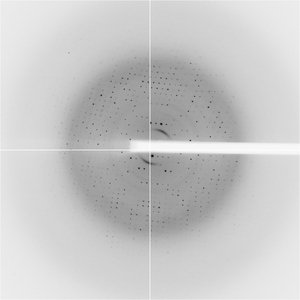

Dataset e6_9.####.img details
| Number of frames | 102 (501 - 602) |
| Distance [mm] | 194.7 |
| Oscillation width [°] | 1.00 |
| Phi [°] | -120.0 |
| Wavelength [Å] | 0.97929 |
| Equipment | 19-BM at APS (Advanced Photon Source) |

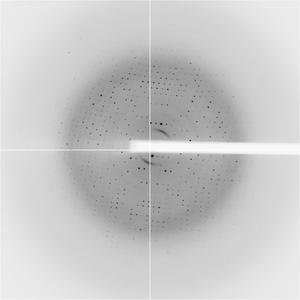

Dataset e6_9.####.img details
| Number of frames | 240 (701 - 940) |
| Distance [mm] | 194.7 |
| Oscillation width [°] | 1.00 |
| Phi [°] | -120.0 |
| Wavelength [Å] | 0.97929 |
| Equipment | 19-BM at APS (Advanced Photon Source) |
