Diffraction project datasets APC101006_5TJJ
- Resolution: 2.5 Å
- Space group: P 41 21 2
PDB website for 5TJJ
PDB validation report for 5TJJ
doi:10.18430/m35tjj
Project details
| Title | Crystal structure of IcIR transcriptional regulator from Alicyclobacillus acidocaldarius |
| Authors | Michalska, K., Mack, J.C., Clancy, S., Joachimiak, A., Midwest Center for Structural Genomics (MCSG) |
| R / Rfree | 0.19 / 0.23 |
| Unit cell edges [Å] | 98.38 x 98.38 x 119.49 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

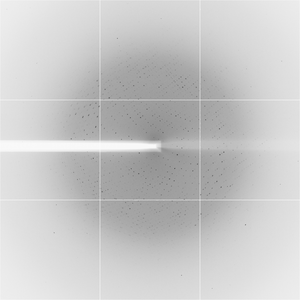

Dataset 1087_M2_C1_data.####.img details
| Number of frames | 70 (1 - 70) |
| Distance [mm] | 320.0 |
| Oscillation width [°] | 1.00 |
| Omega [°] | -90.0 |
| Phi [°] | -0.0141 |
| Wavelength [Å] | 0.97926 |
| Experiment Date | 2011-10-07 |
| Equipment | 19-ID at APS (Advanced Photon Source) |
