Diffraction project datasets APC1005734_4FB7
- Method: SAD
- Resolution: 1.3 Å
- Space group: P 21 21 21
PDB website for 4FB7
PDB validation report for 4FB7
doi:10.18430/M34FB7
Project details

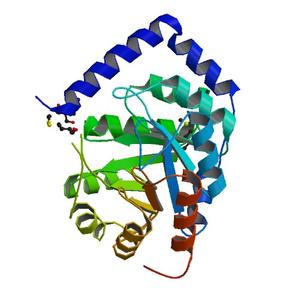

| Title | The apo form of idole-3-glycerol phosphate synthase (TrpC) form Mycobacterium tuberculosis |
| Authors | Michalska, K., Chhor, G., Jedrzejczak, R., Terwilliger, T.C., Rubin, E.J., Guinn, K., Baker, D., Ioerger, T.R., Sacchettini, J.C., Joachimiak, A., Structures of Mtb Proteins Conferring Susceptibility to Known Mtb Inhibitors (MTBI), Midwest Center for Structural Genomics (MCSG) |
| Bioentity | None |
| R / Rfree | 0.13 / 0.15 |
| Unit cell edges [Å] | 57.64 x 58.50 x 80.17 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

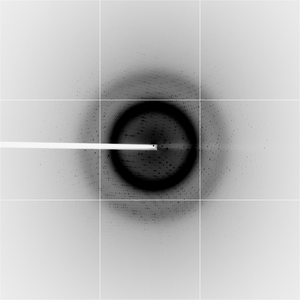

Dataset 5734_C12_high2.####.img details
| Number of frames | 110 (1 - 110) |
| Distance [mm] | 142.7 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 10.0 |
| Wavelength [Å] | 0.97907 |
| Equipment | 19-ID at APS (Advanced Photon Source) |

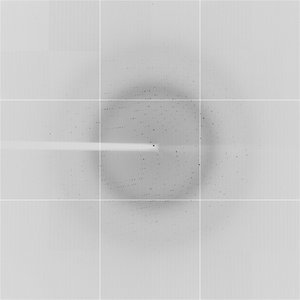

Dataset 5734_C12_low.####.img details
| Number of frames | 139 (1 - 139) |
| Distance [mm] | 200.1 |
| Oscillation width [°] | 1.00 |
| Phi [°] | -65.0 |
| Wavelength [Å] | 0.97907 |
| Equipment | 19-ID at APS (Advanced Photon Source) |
