Diffraction project datasets ALKBH5_4oct
- Resolution: 2.28 Å
- Space group: P 1 21 1
PDB website for 4OCT
PDB validation report for 4OCT
doi:10.18430/m34oct
Project details

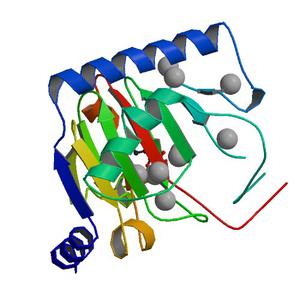

| Title | Crystal structure of human ALKBH5 crystallized in the presence of Mn^{2+} and 2-oxoglutarate |
| Authors | Tempel, W., Chao, X., Liu, K., Dong, A., Cerovina, T., He, H., Bountra, C., Arrowsmith, C.H., Edwards, A.M., Min, J., Structural Genomics Consortium (SGC) |
| R / Rfree | 0.24 / 0.28 |
| Unit cell edges [Å] | 46.93 x 57.23 x 78.41 |
| Unit cell angles [°] | 90.0, 101.1, 90.0 |

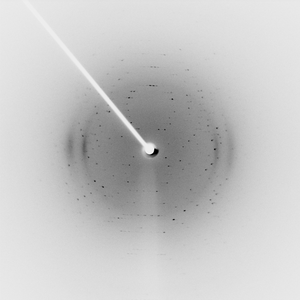

Dataset phi0_####.osc details
| Number of frames | 180 (1 - 180) |
| Distance [mm] | 180.0 |
| Oscillation width [°] | 1.00 |
| Wavelength [Å] | 1.54178 |
| Experiment Date | 2013-05-22 |
| Equipment | HOME_SOURCE at HOME_SOURCE (Home Source) |

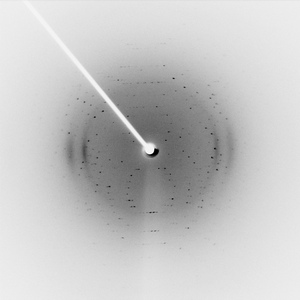

Dataset phi180_####.osc details
| Number of frames | 180 (201 - 380) |
| Distance [mm] | 180.0 |
| Oscillation width [°] | 1.00 |
| Omega [°] | 180.0 |
| Wavelength [Å] | 1.54178 |
| Experiment Date | 2013-05-23 |
| Equipment | HOME_SOURCE at HOME_SOURCE (Home Source) |
