Diffraction project datasets 9hye
- Resolution: 1.64 Å
- Space group: P 1 21 1
PDB website for 9HYE
PDB validation report for 9HYE
doi:10.18430/M39HYE
Project details

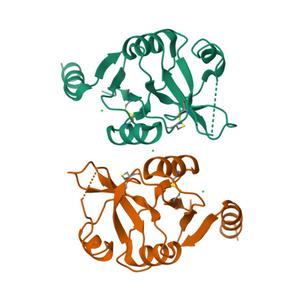

| Title | Structure of the Mus musclus Langerin carbohydrate recognition domain with depleted Calcium |
| Authors | Ruwolt, M., Neu, U., Loll, B. |
| R / Rfree | 0.15 / 0.21 |
| Unit cell edges [Å] | 34.92 x 80.71 x 52.18 |
| Unit cell angles [°] | 90.0, 105.3, 90.0 |

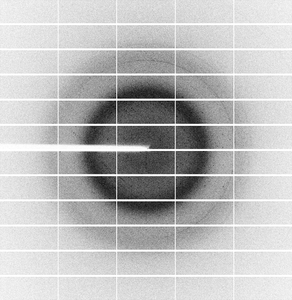

Dataset MaR1_3_1_####.cbf details
| Number of frames | 3600 (1 - 3600) |
| Distance [mm] | 295.2 |
| Oscillation width [°] | 0.10 |
| Omega [°] | 200.0 |
| Kappa / Chi [°] | -0.6488 |
| Phi [°] | 0.0042 |
| Wavelength [Å] | 0.91840 |
| Equipment | BL14.2 at BESSY II (Bessy II) |
