Diffraction project datasets 9ept
- Resolution: 1.743 Å
- Space group: P 41
Uniprot website for Q9XIK0
PDB website for 9EPT
PDB validation report for 9EPT
doi:10.18430/M39EPT
Project details
| Title | Crystal structure of the Plastid Redox Insensitive 2 from Arabidopsis thaliana |
| Authors | Ruedas, R., Vallet, A., Blanvillain, R., Cobessi, D. |
| R / Rfree | 0.17 / 0.21 |
| Unit cell edges [Å] | 37.27 x 37.27 x 101.00 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

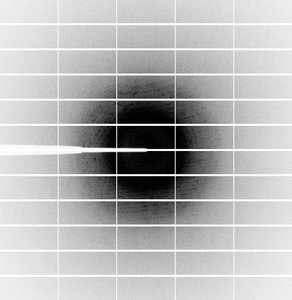

Dataset xtal13_3_####.cbf details
| Number of frames | 800 (1 - 800) |
| Distance [mm] | 189.5 |
| Oscillation width [°] | 0.15 |
| Kappa / Chi [°] | -0.0004 |
| Equipment | XALOC |

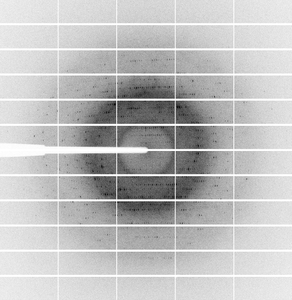

Dataset xtal6_w1_2_####.cbf details
| Number of frames | 1200 (1 - 1200) |
| Distance [mm] | 295.4 |
| Oscillation width [°] | 0.15 |
| Omega [°] | -0.4 |
| Equipment | XALOC |
