Diffraction project datasets 9d77
- Resolution: 3.4 Å
- Space group: P 6
Uniprot website for Q90922
PDB website for 9D77
PDB validation report for 9D77
doi:10.18430/M39D77
Project details

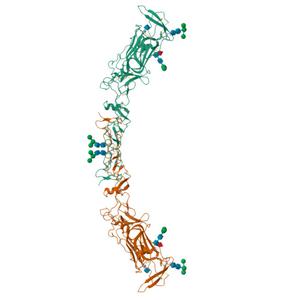

| Title | Crystal form of Netrin-1 mimics nanotubes |
| Authors | Meier, M., Krahn, N.J., McDougall, M.D., Rafiei, F., Koch, M., Stetefeld, J. |
| R / Rfree | 0.30 / 0.33 |
| Unit cell edges [Å] | 189.26 x 189.26 x 45.88 |
| Unit cell angles [°] | 90.0, 90.0, 120.0 |

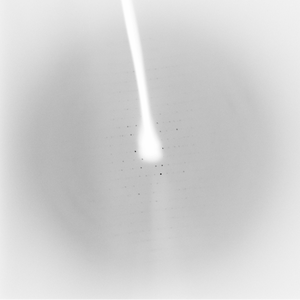

Dataset Net1dCFab_Net1dCtrtFabmay30B5_test_2_####.osc details
| Number of frames | 157 (1 - 157) |
| Distance [mm] | 250.0 |
| Oscillation width [°] | 1.00 |
| Wavelength [Å] | 1.54187 |
| Experiment Date | 2017-06-27 |
| Equipment | HOME_SOURCE at HOME_SOURCE (Home Source) |
